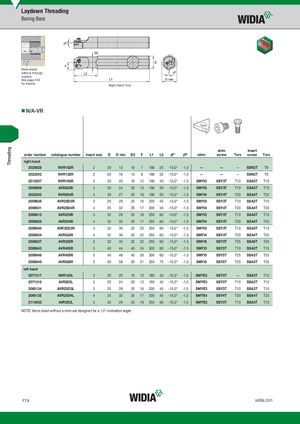

Steel shank without through coolant. See page F42 for inserts. Right Hand Tool
N/A-VR
| order number | catalogue number | insert size | D | D min | D2 | F | L1 | L2 | �F° | �P° | shim | shim screw | Torx | insert screw | Torx |
| right hand | |||||||||||||||
| 2025828 | NVR102R | 2 | 20 | 13 | 10 | 7 | 180 | 25 | -15,0° | -1,5 | — | — | — | SSN2T | T8 |
| 2022342 | NVR132R | 2 | 20 | 16 | 13 | 9 | 180 | 32 | -15,0° | -1,5 | — | — | — | SSN2T | T8 |
| 2012307 | NVR163R | 3 | 20 | 20 | 16 | 12 | 180 | 40 | -15,0° | -1,5 | SMYI3 | SSY3T | T10 | SSA3T | T10 |
| 2009609 | AVR203R | 3 | 20 | 24 | 20 | 13 | 180 | 50 | -15,0° | -1,5 | SMYI3 | SSY3T | T10 | SSA3T | T10 |
| 2022343 | NVR204R | 4 | 20 | 27 | 20 | 16 | 180 | 50 | -15,0° | -1,5 | SMYI4 | SSY4T | T20 | SSA4T | T20 |
| 2009628 | AVR25D3R | 3 | 25 | 29 | 25 | 16 | 200 | 45 | -15,0° | -1,5 | SMYI3 | SSY3T | T10 | SSA3T | T10 |
| 2009631 | AVR25D4R | 4 | 25 | 32 | 25 | 17 | 200 | 45 | -15,0° | -1,5 | SMYI4 | SSY4T | T20 | SSA4T | T20 |
| 2009612 | AVR253R | 3 | 32 | 29 | 25 | 16 | 250 | 60 | -15,0° | -1,5 | SMYI3 | SSY3T | T10 | SSA3T | T10 |
| 2009625 | AVR254R | 4 | 32 | 32 | 25 | 17 | 250 | 60 | -15,0° | -1,5 | SMYI4 | SSY4T | T20 | SSA4T | T20 |
| 2009640 | AVR32D3R | 3 | 32 | 36 | 32 | 20 | 250 | 60 | -15,0° | -1,5 | SMYI3 | SSY3T | T10 | SSA3T | T10 |
| 2009634 | AVR324R | 4 | 32 | 39 | 32 | 22 | 250 | 60 | -15,0° | -1,5 | SMYI4 | SSY4T | T20 | SSA4T | T20 |
| 2009637 | AVR325R | 5 | 32 | 40 | 32 | 22 | 250 | 60 | -15,0° | -1,5 | SMYI5 | SSY5T | T25 | SSA5T | T25 |
| 2009643 | AVR403R | 3 | 40 | 44 | 40 | 24 | 300 | 60 | -15,0° | -1,5 | SMYI3 | SSY3T | T10 | SSA3T | T10 |
| 2009646 | AVR405R | 5 | 40 | 48 | 40 | 26 | 300 | 60 | -15,0° | -1,5 | SMYI5 | SSY5T | T25 | SSA5T | T25 |
| 2009649 | AVR505R | 5 | 50 | 58 | 50 | 31 | 350 | 75 | -15,0° | -1,5 | SMYI5 | SSY5T | T25 | SSA5T | T25 |
| left hand | |||||||||||||||
| 2071317 | NVR163L | 3 | 20 | 20 | 16 | 12 | 180 | 40 | -15,0° | -1,5 | SMYE3 | SSY3T | — | SSA3T | T10 |
| 2071318 | AVR203L | 3 | 20 | 24 | 20 | 13 | 180 | 40 | -15,0° | -1,5 | SMYE3 | SSY3T | T10 | SSA3T | T10 |
| 2065134 | AVR25D3L | 3 | 25 | 29 | 25 | 16 | 200 | 45 | -15,0° | -1,5 | SMYE3 | SSY3T | T10 | SSA3T | T10 |
| 2065135 | AVR25D4L | 4 | 25 | 32 | 25 | 17 | 200 | 45 | -15,0° | -1,5 | SMYE4 | SSY4T | T20 | SSA4T | T20 |
| 2114832 | AVR253L | 3 | 32 | 29 | 25 | 16 | 250 | 60 | -15,0° | -1,5 | SMYE3 | SSY3T | T10 | SSA3T | T10 |
