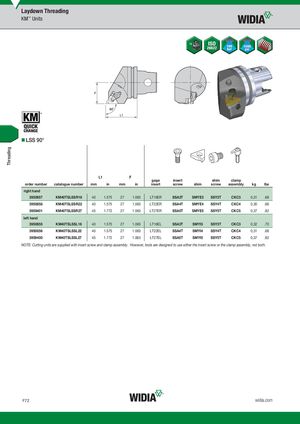

LSS 90°
L1 F
L1 F
| order number | catalogue number | mm L | in 1 | mm | in F | gage insert | insert screw | shim | shim screw | clamp assembly | kg | lbs |
| right hand 3950857 | KM40TSLSSR16 | 40 | 1.575 | 27 | 1.063 | LT16ER | SSA3T | SMYE3 | SSY3T | CKC3 | 0,31 | .68 |
| 3950858 | KM40TSLSSR22 | 40 | 1.575 | 27 | 1.063 | LT22ER | SSA4T | SMYE4 | SSY4T | CKC4 | 0,30 | .66 |
| 3959401 | KM40TSLSSR27 | 45 | 1.772 | 27 | 1.063 | LT27ER | SSA5T | SMYE5 | SSY5T | CKC5 | 0,37 | .82 |
| left hand | ||||||||||||
| 3950855 | KM40TSLSSL16 | 40 | 1.575 | 27 | 1.063 | LT16EL | SSA3T | SMYI3 | SSY3T | CKC3 | 0,32 | .70 |
| 3950856 | KM40TSLSSL22 | 40 | 1.575 | 27 | 1.063 | LT22EL | SSA4T | SMYI4 | SSY4T | CKC4 | 0,31 | .68 |
| 3959400 | KM40TSLSSL27 | 45 | 1.772 | 27 | 1.063 | LT27EL | SSA5T | SMYI5 | SSY5T | CKC5 | 0,37 | .82 |
LWID_Master16_Turning_Threading_F072_F073_Metric_REBRAND.indd 72ViWID M16 TiThdiF072 F073 M i REBRANDN b 12 201511 50AM 11/12/15 11:52 AM
