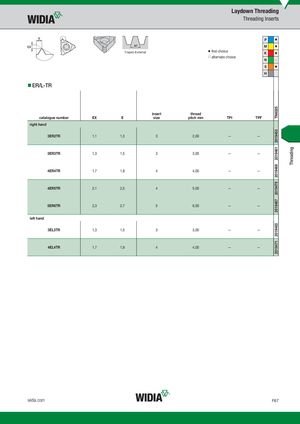

| Trapez-Ex | ternal | �first choice �alternate choice | P M K N S H | � � � � � | |||
| �ER/L-TR | |||||||
| catalogue number | EX | E | insert size | thread pitch mm | TPI | TPF | TN6025 |
| right hand 3ER2TR | 1,1 | 1,3 | 3 | 2,00 | — | — | 2019453 |
| 3ER3TR | 1,3 | 1,5 | 3 | 3,00 | — | — | 2019461 |
| 4ER4TR | 1,7 | 1,9 | 4 | 4,00 | — | — | 2019469 |
| 4ER5TR 5ER6TR | 2,1 2,3 | 2,5 2,7 | 4 5 | 5,00 6,00 | — — | — — | 2019479 2019487 |
| left hand | |||||||
| 3EL3TR | 1,3 | 1,5 | 3 | 3,00 | — | — | 2019463 |
| 4EL4TR | 1,7 | 1,9 | 4 | 4,00 | — | — | 2019471 |
