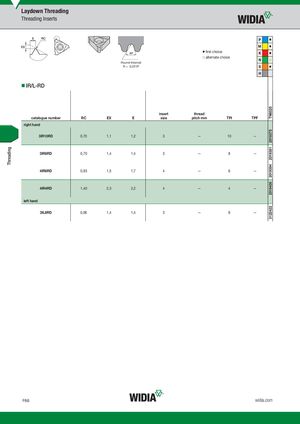

| Round-Internal R = 0,221P | �first cho �alternat | i ice e choice | P M K N S H | � � � � � | ||||
| IR/L-RD catalogue number | RC | EX | E | insert size | thread pitch mm | TPI | TPF | TN6025 |
| right hand 3IR10RD | 0,70 | 1,1 | 1,2 | 3 | — | 10 | — | 2019375 |
| 3IR8RD | 0,70 | 1,4 | 1,4 | 3 | — | 8 | — | 2019381 |
| 4IR6RD | 0,93 | 1,5 | 1,7 | 4 | — | 6 | — | 2019394 |
| 4IR4RD left hand | 1,40 | 2,3 | 2,2 | 4 | — | 4 | — | 2019400 |
| 3IL8RD | 0,06 | 1,4 | 1,4 | 3 | — | 8 | — | 3122422 |
