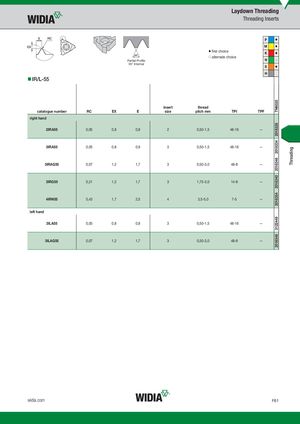

| IR/L-55 | Partial Profile 55° Internal | �first c �altern | i hoice ate choice | P M K N S H | � � � � � | |||
| catalogue number | RC | EX | E | insert size | thread pitch mm | TPI | TPF | TN6025 |
| right hand | ||||||||
| 2IRA55 | 0,05 | 0,8 | 0,9 | 2 | 0,50-1,5 | 48-16 | — | 2018328 |
| 3IRA55 | 0,05 | 0,8 | 0,9 | 3 | 0,50-1,5 | 48-16 | — | 2018334 |
| 3IRAG55 | 0,07 | 1,2 | 1,7 | 3 | 0,50-3,0 | 48-8 | — | 2018346 |
| 3IRG55 | 0,21 | 1,2 | 1,7 | 3 | 1,75-3,0 | 14-8 | — | 2018340 |
| 4IRN55 | 0,43 | 1,7 | 2,5 | 4 | 3,5-5,0 | 7-5 | — | 2018354 |
| left hand 3ILA55 | 0,05 | 0,8 | 0,9 | 3 | 0,50-1,5 | 48-16 | — | 3122449 |
| 3ILAG55 | 0,07 | 1,2 | 1,7 | 3 | 0,50-3,0 | 48-8 | — | 2018348 |
