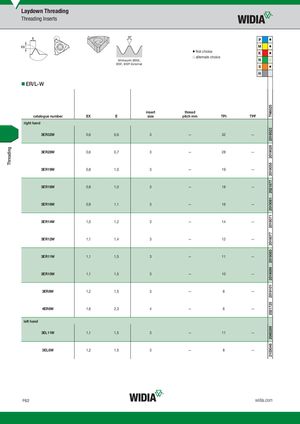

| �ER/L-W | Whitworth BSF, BSP-E | BSW, xternal | �first choice �alternate choice | P � M � K � N � S � H | |
| catalogue number | EX | E | insert size | thread pitch mm TPI | TPF TN6025 |
| right hand 3ER32W | 0,6 | 0,6 | 3 | — 32 | — 2019023 |
| 3ER28W reading | 0,6 | 0,7 | 3 | — 28 | — 2019029 |
| 3ER19W Th | 0,8 | 1,0 | 3 | — 19 | — 2019055 |
| 3ER18W | 0,8 | 1,0 | 3 | — 18 | — 2021677 |
| 3ER16W | 0,9 | 1,1 | 3 | — 16 | — 2019061 |
| 3ER14W | 1,0 | 1,2 | 3 | — 14 | — 2019071 |
| 3ER12W | 1,1 | 1,4 | 3 | — 12 | — 2019077 |
| 3ER11W | 1,1 | 1,5 | 3 | — 11 | — 2019083 |
| 3ER10W | 1,1 | 1,5 | 3 | — 10 | — 2019089 |
| 3ER8W | 1,2 | 1,5 | 3 | — 8 | — 2019101 |
| 4ER6W | 1,6 | 2,3 | 4 | — 6 | — 2021725 |
| left hand 3EL11W | 1,1 | 1,5 | 3 | — 11 | — 2065289 |
| 3EL8W | 1,2 | 1,5 | 3 | — 8 | — 2103046 |
