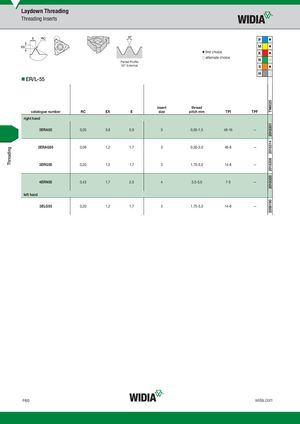

Общий каталог Widia 2017 - страница 658
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| �ER/L-55 catalogue number | RC | EX | E Partial Profile 55° External | insert size | thread pitch mm �first c �altern | TPI i hoice ate choice | TPF P M K N S H | TN6025 � � � � � |
| right hand | 1 | |||||||
| 3ERA55 | 0,05 | 0,8 | 0,9 | 3 | 0,50-1,5 | 48-16 | — | 201830 |
| 3ERAG55 | 0,08 | 1,2 | 1,7 | 3 | 0,50-3,0 | 48-8 | — | 2018314 |
| 3ERG55 | 0,20 | 1,2 | 1,7 | 3 | 1,75-3,0 | 14-8 | — | 2018308 |
| 4ERN55 left hand | 0,43 | 1,7 | 2,5 | 4 | 3,5-5,0 | 7-5 | — | 2018320 |
| 3ELG55 | 0,20 | 1,2 | 1,7 | 3 | 1,75-3,0 | 14-8 | — | 2008190 |
