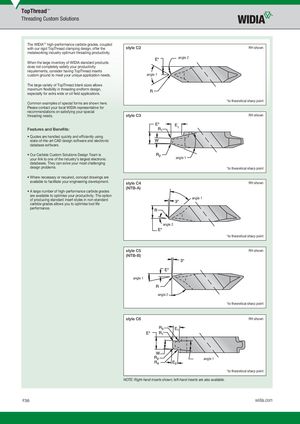

Threading Custom Solutions

The WIDIA™ high-performance carbide grades, coupled

with our rigid TopThread clamping design, offer the style C2 RH shown

metalworking industry optimum threading productivity. angle 2 When the large inventory of WIDIA standard products does not completely satisfy your productivity

requirements, consider having TopThread inserts custom ground to meet your unique application needs. angle 1

The large variety of TopThread blank sizes allows maximum fl exibility in threading endform design, especially for extra wide or oil fi eld applications. *to theoretical sharp point Common examples of special forms are shown here. Please contact your local WIDIA representative for recommendations on satisfying your special

threading needs. style C3 RH shown

Features and Benefi ts:

• Quotes are handled quickly and effi ciently using state-of-the-art CAD design software and electronic database software.
• Our Carbide Custom Solutions Design Team is your link to one of the industry’s largest electronic databases. They can solve your most challenging design problems.
• Where necessary or required, concept drawings are available to facilitate your engineering development.
• A large number of high-performance carbide grades are available to optimise your productivity. The option of producing standard insert styles in non-standard carbide grades allows you to optimise tool life performance.

angle 1 *to theoretical sharp point

style C4 RH shown (NTB-A)

angle 1

angle 2

*to theoretical sharp point

style C5 RH shown (NTB-B)

angle 1

angle 2 *to theoretical sharp point

style C6 RH shown

angle 1

*to theoretical sharp point NOTE: Right-hand inserts shown; left-hand inserts are also available.
