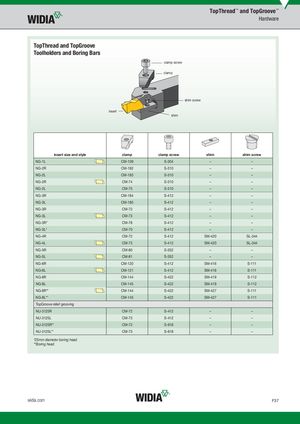

TopThread™ and TopGroove™
TopThread and TopGroove
Toolholders and Boring Bars
clamp screw
clamp
shim screw
insert shim
| insert size and style clamp | clamp screw | shim | shim screw | ||
| NG-1L | CM-109 | S-304 | – | – | |
| NG-2R | CM-182 | S-310 | – | – | |
| NG-2L | CM-183 | S-310 | – | – | |
| NG-2R | CM-74 | S-310 | – | – | |
| NG-2L | CM-75 | S-310 | – | – | |
| NG-3R | CM-184 | S-412 | – | – | |
| NG-3L | CM-185 | S-412 | – | – | |
| NG-3R | CM-72 | S-412 | – | – | |
| NG-3L | CM-73 | S-412 | – | – | |
| NG-3R* | CM-78 | S-412 | – | – | |
| NG-3L* | CM-70 | S-412 | – | – | |
| NG-4R | CM-72 | S-412 | SM-420 | SL-344 | |
| NG-4L | CM-73 | S-412 | SM-420 | SL-344 | |
| NG-5R | CM-80 | S-352 | – | – | |
| NG-5L | CM-81 | S-352 | – | – | |
| NG-6R | CM-120 | S-412 | SM-416 | S-111 | |
| NG-6L | CM-121 | S-412 | SM-416 | S-111 | |
| NG-8R | CM-144 | S-422 | SM-419 | S-112 | |
| NG-8L | CM-145 | S-422 | SM-419 | S-112 | |
| NG-8R** | CM-144 | S-422 | SM-427 | S-111 | |
| NG-8L** | CM-145 | S-422 | SM-427 | S-111 | |
| TopGroove relief grooving | |||||
| NU-3125R | CM-72 | S-412 | – | – | |
| NU-3125L | CM-73 | S-412 | – | – | |
| NU-3125R** | CM-72 | S-618 | – | – | |
| NU-3125L** | CM-73 | S-618 | – | – |
*25mm diameter boring head. **Boring head.
