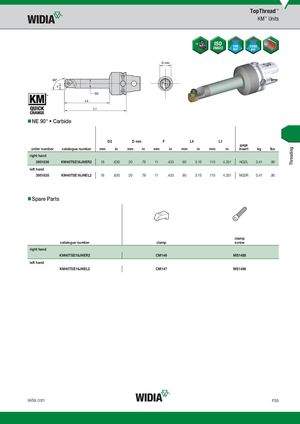

- NE 90° • Carbide
| D2 | D min | F | L4 | L1 | |
| D2 | D min | F | L4 | L1 | |
| gage |
| order number | catalogue number | mm | in | mm | in | mm | in | mm | in | mm | in | insert | kg | lbs | |
| right hand | |||||||||||||||
| 3951836 | KM40TSE16JNER2 | 16 | .630 | 20 | .79 | 11 | .433 | 80 | 3.15 | 110 | 4.331 | NG2L | 0,41 | .90 | |
| left hand | |||||||||||||||
| 3951835 | KM40TSE16JNEL2 | 16 | .630 | 20 | .79 | 11 | .433 | 80 | 3.15 | 110 | 4.331 | NG2R | 0,41 | .90 |
- Spare Parts
right hand
left hand
clamp
| catalogue number | clamp | screw |
| KM40TSE16JNER2 | CM146 | MS1488 |
| KM40TSE16JNEL2 | CM147 | MS1488 |
