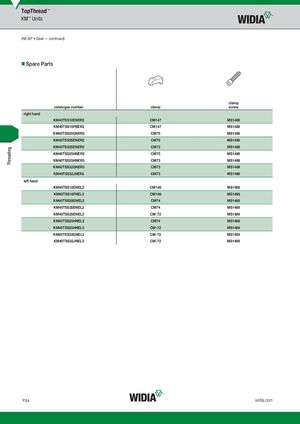

(NE 90° • Steel — continued)
Spare Parts
| catalogue number | clamp | clamp screw | |
| right hand | |||
| KM40TSS12ENER2 | CM147 | MS1488 | |
| KM40TSS16FNER2 | CM147 | MS1488 | |
| KM40TSS20GNER2 | CM75 | MS1488 | |
| KM40TSS25ENER2 | CM75 | MS1488 | |
| KM40TSS25ENER3 | CM73 | MS1489 | |
| KM40TSS25HNER2 | CM75 | MS1488 | |
| KM40TSS25HNER3 | CM73 | MS1489 | |
| KM40TSS32GNER3 | CM73 | MS1489 | |
| KM40TSS32JNER3 | CM73 | MS1489 | |
| left hand | |||
| KM40TSS12ENEL2 | CM146 | MS1488 | |
| KM40TSS16FNEL2 | CM146 | MS1488 | |
| KM40TSS20GNEL2 | CM74 | MS1488 | |
| KM40TSS25ENEL2 | CM74 | MS1488 | |
| KM40TSS25ENEL3 | CM-72 | MS1489 | |
| KM40TSS25HNEL2 | CM74 | MS1488 | |
| KM40TSS25HNEL3 | CM-72 | MS1489 | |
| KM40TSS32GNEL3 | CM-72 | MS1489 | |
| KM40TSS32JNEL3 | CM-72 | MS1489 |
