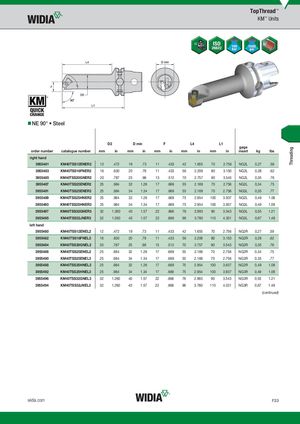

Общий каталог Widia 2017 - страница 631
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
NE 90° • Steel
D2 D min F L4 L1
| D2 | D | min | F | L4 | L1 | gage | ||||||||
| order number | catalogue number | mm | in | mm | in | mm | in | mm | in | mm | in | insert | kg | lbs |
| right hand | ||||||||||||||
| 3955481 | KM40TSS12ENER2 | 12 | .472 | 19 | .73 | 11 | .433 | 42 | 1.655 | 70 | 2.756 | NG2L | 0,27 | .58 |
| 3955483 | KM40TSS16FNER2 | 16 | .630 | 20 | .79 | 11 | .433 | 56 | 2.209 | 80 | 3.150 | NG2L | 0,28 | .62 |
| 3955485 | KM40TSS20GNER2 | 20 | .787 | 25 | .98 | 13 | .512 | 70 | 2.757 | 90 | 3.543 | NG2L | 0,35 | .76 |
| 3955487 | KM40TSS25ENER2 | 25 | .984 | 32 | 1.26 | 17 | .669 | 55 | 2.169 | 70 | 2.756 | NG2L | 0,34 | .75 |
| 3955491 | KM40TSS25ENER3 | 25 | .984 | 34 | 1.34 | 17 | .669 | 55 | 2.169 | 70 | 2.756 | NG3L | 0,35 | .77 |
| 3955489 | KM40TSS25HNER2 | 25 | .984 | 32 | 1.26 | 17 | .669 | 75 | 2.954 | 100 | 3.937 | NG2L | 0,49 | 1.08 |
| 3955493 | KM40TSS25HNER3 | 25 | .984 | 34 | 1.34 | 17 | .669 | 75 | 2.954 | 100 | 3.937 | NG3L | 0,49 | 1.09 |
| 3955497 | KM40TSS32GNER3 | 32 | 1.260 | 40 | 1.57 | 22 | .866 | 76 | 2.993 | 90 | 3.543 | NG3L | 0,55 | 1.21 |
| 3955495 | KM40TSS32JNER3 | 32 | 1.260 | 40 | 1.57 | 22 | .866 | 96 | 3.780 | 110 | 4.331 | NG3L | 0,67 | 1.48 |
| left hand | ||||||||||||||
| 3955480 | KM40TSS12ENEL2 | 12 | .472 | 19 | .73 | 11 | .433 | 42 | 1.655 | 70 | 2.756 | NG2R | 0,27 | .59 |
| 3955482 | KM40TSS16FNEL2 | 16 | .630 | 20 | .79 | 11 | .433 | 56 | 2.209 | 80 | 3.150 | NG2R | 0,28 | .62 |
| 3955484 | KM40TSS20GNEL2 | 20 | .787 | 25 | .98 | 13 | .512 | 70 | 2.757 | 90 | 3.543 | NG2R | 0,35 | .76 |
| 3955486 | KM40TSS25ENEL2 | 25 | .984 | 32 | 1.26 | 17 | .669 | 55 | 2.169 | 70 | 2.756 | NG2R | 0,34 | .75 |
| 3955490 | KM40TSS25ENEL3 | 25 | .984 | 34 | 1.34 | 17 | .669 | 55 | 2.169 | 70 | 2.756 | NG3R | 0,35 | .77 |
| 3955488 | KM40TSS25HNEL2 | 25 | .984 | 32 | 1.26 | 17 | .669 | 75 | 2.954 | 100 | 3.937 | NG2R | 0,49 | 1.08 |
| 3955492 | KM40TSS25HNEL3 | 25 | .984 | 34 | 1.34 | 17 | .669 | 75 | 2.954 | 100 | 3.937 | NG3R | 0,49 | 1.09 |
| 3955496 | KM40TSS32GNEL3 | 32 | 1.260 | 40 | 1.57 | 22 | .866 | 76 | 2.993 | 90 | 3.543 | NG3R | 0,55 | 1.21 |
| 3955494 | KM40TSS32JNEL3 | 32 | 1.260 | 40 | 1.57 | 22 | .866 | 96 | 3.780 | 110 | 4.331 | NG3R | (c 0,67 | ontinued) 1.48 |
