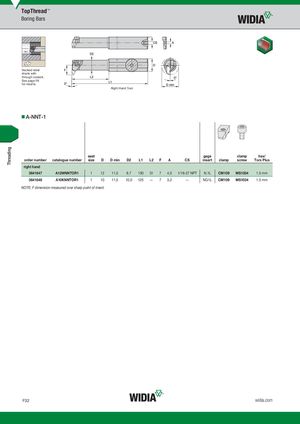

Necked steel shank with through coolant. See page F8 for inserts. Right Hand Tool
A-NNT-1
seat gage clamp hex/
| order number | catalogue number | size | D | D min | D2 | L1 | L2 | F | A | CS | insert | clamp | screw | Torx Plus | ||
| right hand | ||||||||||||||||
| 3641647 | A12MNNTOR1 | 1 | 12 | 11,5 | 8,7 | 150 | 31 | 7 | 4,0 | 1/16-27 NPT | N.1L | CM109 | MS1034 | 1.5 mm | ||
| 3641648 | A10KNNTOR1 | 1 | 10 | 11,5 | 10,0 | 125 | — | 7 | 3,2 | — | NG1L | CM109 | MS1034 | 1.5 mm |
NOTE: F dimension measured over sharp point of insert.
