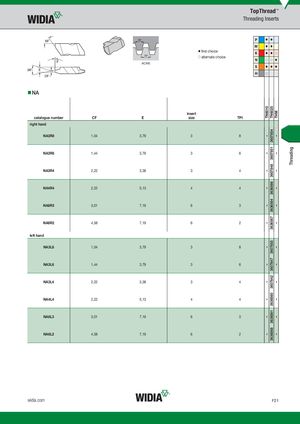

Общий каталог Widia 2017 - страница 619
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| 29° | P | � � | ||||
| 29° ACME | �first choice �alternate choice | M K N S H | � � � � � � � � � � � � | |||
| NA catalogue number | CF | E | insert size | TPI | TN6010 TN6025 THM | |
| right hand NA3R8 | 1,04 | 3,79 | 3 | 8 | – 3607854 – | |
| NA3R6 | 1,44 | 3,79 | 3 | 6 | – 3607851 – | |
| NA3R4 | 2,22 | 3,38 | 3 | 4 | – 3607848 – | |
| NA4R4 NA6R3 | 2,22 3,01 | 5,13 7,19 | 4 6 | 4 3 | – 3636566 – – 3636564 – | |
| NA6R2 left hand | 4,58 | 7,19 | 6 | 2 | – 3636567 – | |
| NA3L8 NA3L6 | 1,04 1,44 | 3,79 3,79 | 3 3 | 8 6 | – 3607855 – – 3607847 – | |
| NA3L4 NA4L4 | 2,22 2,22 | 3,38 5,13 | 3 4 | 4 4 | – 3607842 – – 3636560 – | |
| NA6L3 NA6L2 | 3,01 4,58 | 7,19 7,19 | 6 6 | 3 2 | – 3636561 – – 3636568 – |
