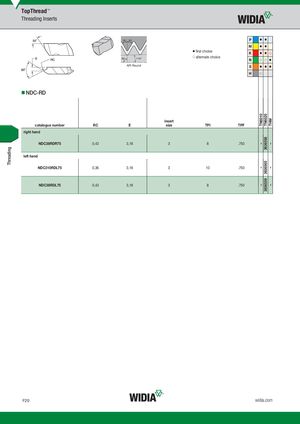

° ° P
30 30 M first choice K
alternate choice
90° 1°47´ N
API Round S H
NDC-RD
insert
| catalogue number | RC | E | size | TPI | TPF | |
| right hand | ||||||
| NDC38RDR75 | 0,43 | 3,18 | 3 | 8 | .750 |
left hand
NDC310RDL75 0,36 3,18 3 10 .750
NDC38RDL75 0,43 3,18 3 8 .750
