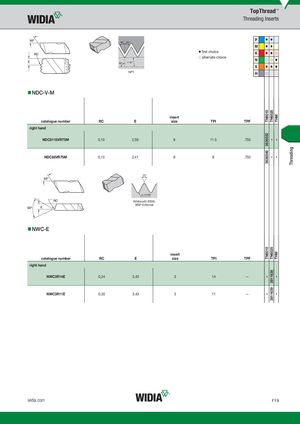

30° 30 °
° 1 °47' 90
NPT
first choice alternate choice
P M K N S H
- NDC-V-M
insert
| catalogue number | RC | E | size | TPI | TPF | |
| right hand | ||||||
| NDC8115VR75M | 0,10 | 2,59 | 8 | 11.5 | .750 |
NDC88VR75M 0,13 2,41 8 8 .750
55°
0,1373P Whitworth BSW, BSP-External
- NWC-E
insert
| catalogue number | RC | E | size | TPI | TPF | ||
| right hand | |||||||
| NWC3R14E | 0,24 | 3,43 | 3 | 14 | — |
NWC3R11E 0,30 3,43 3 11 —
