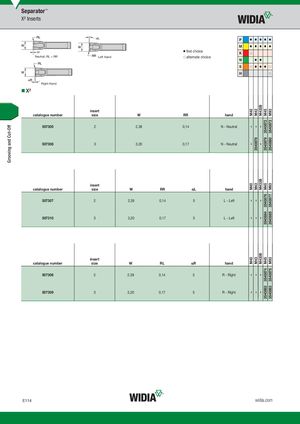

X² Inserts
Neutral, RL = RR
Right Hand
X²
Left Hand
first choice alternate choice
P M K N S H
insert
| catalogue number | size | W | RR | hand | |
| 507305 | 2 | 2,39 | 0,14 | N - Neutral |
507308 3 3,20 0,17 N - Neutral
insert
| catalogue number | size | W | RR | _L | hand | |
| 507307 | 2 | 2,39 | 0,14 | 5 | L - Left |
507310 3 3,20 0,17 5 L - Left
insert
| catalogue number | size | W | RL | _R | hand | |
| 507306 | 2 | 2,39 | 0,14 | 5 | R - Right |
507309 3 3,20 0,17 5 R - Right
