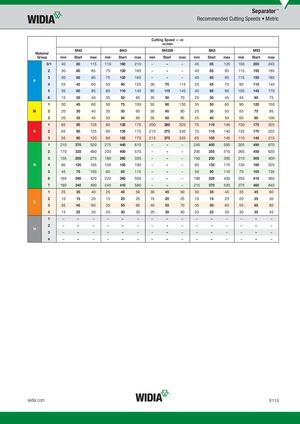

| Cutti | ng Speed m/min | — vc | |||||||||||||
| Material | M40 | M43 | M433B | M45 | M93 | ||||||||||
| Group | min | Start | max | min | Start | max | min | Start | max | min | Start | max | min | Start | max |
| 0/1 | 40 | 80 | 115 | 110 | 160 | 210 | – | – | – | 45 | 85 | 125 | 150 | 200 | 245 |
| 2 | 30 | 60 | 85 | 75 | 120 | 165 | – | – | – | 40 | 65 | 95 | 115 | 150 | 185 |
| 3 | 30 | 60 | 85 | 75 | 120 | 165 | – | – | – | 40 | 65 | 95 | 115 | 150 | 185 |
| P 4 | 25 | 45 | 60 | 55 | 90 | 125 | 30 | 70 | 115 | 25 | 45 | 70 | 80 | 110 | 140 |
| 5 | 35 | 60 | 85 | 85 | 110 | 140 | 85 | 115 | 145 | 40 | 65 | 95 | 105 | 140 | 170 |
| 6 | 15 | 30 | 40 | 35 | 50 | 65 | 35 | 50 | 70 | 20 | 30 | 45 | 45 | 60 | 75 |
| 1 | 30 | 45 | 60 | 50 | 75 | 100 | 55 | 90 | 130 | 35 | 50 | 65 | 90 | 120 | 150 |
| M 2 | 20 | 30 | 40 | 35 | 50 | 65 | 35 | 60 | 80 | 25 | 35 | 50 | 55 | 75 | 95 |
| 3 | 20 | 35 | 40 | 35 | 50 | 65 | 35 | 60 | 85 | 25 | 40 | 50 | 60 | 80 | 100 |
| 1 | 65 | 95 | 125 | 90 | 135 | 175 | 200 | 260 | 320 | 75 | 110 | 145 | 130 | 175 | 225 |
| K 2 | 65 | 95 | 125 | 90 | 135 | 175 | 210 | 270 | 330 | 75 | 110 | 140 | 135 | 170 | 225 |
| 3 | 55 | 90 | 120 | 80 | 125 | 170 | 215 | 275 | 335 | 65 | 105 | 145 | 110 | 140 | 215 |
| 1 | 210 | 370 | 520 | 275 | 440 | 610 | – | – | – | 245 | 400 | 550 | 305 | 490 | 670 |
| 2 | 170 | 325 | 480 | 230 | 400 | 570 | – | – | – | 200 | 355 | 510 | 265 | 450 | 630 |
| 3 | 135 | 205 | 275 | 180 | 260 | 335 | – | – | – | 150 | 230 | 305 | 210 | 305 | 400 |
| N 4 | 80 | 120 | 165 | 105 | 150 | 190 | – | – | – | 95 | 135 | 175 | 130 | 180 | 225 |
| 5 | 45 | 75 | 100 | 60 | 85 | 115 | – | – | – | 50 | 80 | 110 | 70 | 105 | 135 |
| 6 | 165 | 290 | 420 | 220 | 360 | 500 | – | – | – | 190 | 320 | 450 | 255 | 410 | 560 |
| 7 | 180 | 340 | 490 | 245 | 410 | 580 | – | – | – | 215 | 370 | 520 | 275 | 460 | 640 |
| 1 | 25 | 35 | 40 | 25 | 40 | 50 | 30 | 45 | 50 | 30 | 35 | 45 | 35 | 45 | 60 |
| 2 | 10 | 15 | 20 | 15 | 20 | 25 | 15 | 20 | 25 | 10 | 15 | 20 | 20 | 25 | 30 |
| S 3 | 35 | 45 | 60 | 35 | 50 | 65 | 40 | 55 | 70 | 35 | 50 | 65 | 55 | 65 | 80 |
| 4 | 15 | 25 | 30 | 25 | 30 | 35 | 25 | 30 | 40 | 20 | 25 | 35 | 30 | 35 | 45 |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| H 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
