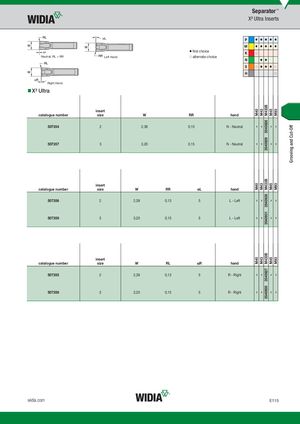

X² Ultra Inserts
Neutral, RL = RR
Right Hand
X² Ultra
Left Hand
first choice alternate choice
P M K N S H
insert
| catalogue number | size | W | RR | hand | |
| 507354 | 2 | 2,39 | 0,15 | N - Neutral |
507357 3 3,20 0,15 N - Neutral
insert
| catalogue number | size | W | RR | _L | hand | |
| 507356 | 2 | 2,39 | 0,13 | 5 | L - Left |
507359 3 3,20 0,15 5 L - Left
insert
| catalogue number | size | W | RL | _R | hand | |
| 507355 | 2 | 2,39 | 0,13 | 5 | R - Right |
507358 3 3,20 0,15 5 R - Right
