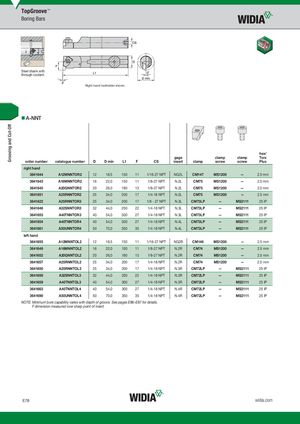

Steel shank with through coolant.
Right-hand toolholder shown.
A-NNT
| order number | catalogue number | D | D min | L1 | F | CS | gage insert | clamp | clamp screw | clamp screw | hex/ Torx Plus |
| right hand | |||||||||||
| 3641644 | A12MNNTOR2 | 12 | 18,5 | 150 | 11 | 1/16-27 NPT | NG2L | CM147 | MS1200 | — | 2.5 mm |
| 3641643 | A16MNNTOR2 | 16 | 22,0 | 150 | 11 | 1/8-27 NPT | N.2L | CM75 | MS1200 | — | 2.5 mm |
| 3641645 | A20QNNTOR2 | 20 | 26,0 | 180 | 13 | 1/8-27 NPT | N.2L | CM75 | MS1200 | — | 2.5 mm |
| 3641651 | A25RNNTOR2 | 25 | 34,0 | 200 | 17 | 1/4-18 NPT | N.2L | CM75 | MS1200 | — | 2.5 mm |
| 3641622 | A25RNNTOR3 | 25 | 34,0 | 200 | 17 | 1/8 - 27 NPT | N.3L | CM73LP | — | MS2111 | 25 IP |
| 3641646 | A32SNNTOR3 | 32 | 44,0 | 250 | 22 | 1/4-18 NPT | N.3L | CM73LP | — | MS2111 | 25 IP |
| 3641653 | A40TNNTOR3 | 40 | 54,0 | 300 | 27 | 1/4-18 NPT | N.3L | CM73LP | — | MS2111 | 25 IP |
| 3641654 | A40TNNTOR4 | 40 | 54,0 | 300 | 27 | 1/4-18 NPT | N.4L | CM73LP | — | MS2111 | 25 IP |
| 3641661 | A50UNNTOR4 | 50 | 70,0 | 350 | 35 | 1/4-18 NPT | N.4L | CM73LP | — | MS2111 | 25 IP |
| left hand | |||||||||||
| 3641655 | A12MNNTOL2 | 12 | 18,5 | 150 | 11 | 1/16-27 NPT | NG2R | CM146 | MS1200 | — | 2.5 mm |
| 3641649 | A16MNNTOL2 | 16 | 22,0 | 150 | 11 | 1/8-27 NPT | N.2R | CM74 | MS1200 | — | 2.5 mm |
| 3641652 | A20QNNTOL2 | 20 | 26,0 | 180 | 13 | 1/8-27 NPT | N.2R | CM74 | MS1200 | — | 2.5 mm |
| 3641657 | A25RNNTOL2 | 25 | 34,0 | 200 | 17 | 1/4-18 NPT | N.2R | CM74 | MS1200 | — | 2.5 mm |
| 3641650 | A25RNNTOL3 | 25 | 34,0 | 200 | 17 | 1/4-18 NPT | N.3R | CM72LP | — | MS2111 | 25 IP |
| 3641656 | A32SNNTOL3 | 32 | 44,0 | 250 | 22 | 1/4-18 NPT | N.3R | CM72LP | — | MS2111 | 25 IP |
| 3641659 | A40TNNTOL3 | 40 | 54,0 | 300 | 27 | 1/4-18 NPT | N.3R | CM72LP | — | MS2111 | 25 IP |
| 3641663 | A40TNNTOL4 | 40 | 54,0 | 300 | 27 | 1/4-18 NPT | N.4R | CM72LP | — | MS2111 | 25 IP |
| 3641690 | A50UNNTOL4 | 50 | 70,0 | 350 | 35 | 1/4-18 NPT | N.4R | CM72LP | — | MS2111 | 25 IP |
