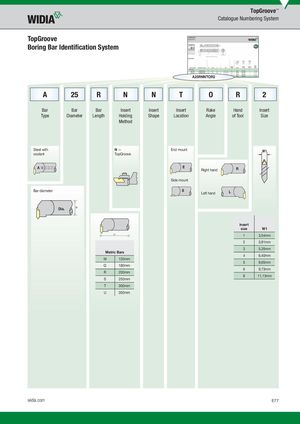

TopGroove
Boring Bar Identifi cation System
A25RNNTOR2
| A | 25 | R | N | N | T | O | R | 2 | |||
| Bar | Bar | Bar | Insert | Insert | Insert | Rake | Hand | Insert | |||
| Type | Diameter | Length | Holding | Shape | Location | Angle | of Tool | Size |
Method
Steel with N — End mount
coolant TopGroove
A E
Side mount
Bar diameter S
W1
Right hand R
Left hand L
Dia.
Metric Bars
| M | 150mm |
| Q | 180mm |
| R | 200mm |
| S | 250mm |
| T | 300mm |
| U | 350mm |
insert
| size | W1 |
| 1 | 3,54mm |
| 2 | 3,81mm |
| 3 | 5,35mm |
| 4 | 6,40mm |
| 5 | 9,65mm |
| 6 | 9,73mm |
| 8 | 11,13mm |
