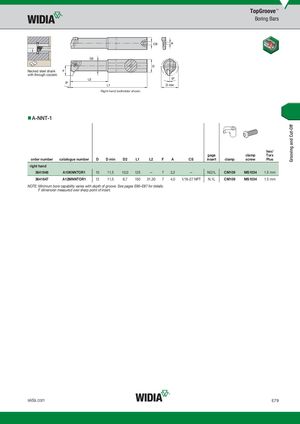

Necked steel shank with through coolant.
Right-hand toolholder shown.
A-NNT-1
hex/
gage clamp Torx
| order number | catalogue number | D | D min | D2 | L1 | L2 | F | A | CS | insert | clamp | screw | Plus | ||
| right hand | |||||||||||||||
| 3641648 | A10KNNTOR1 | 10 | 11,5 | 10,0 | 125 | — | 7 | 3,2 | — | NG1L | CM109 | MS1034 | 1.5 mm | ||
| 3641647 | A12MNNTOR1 | 12 | 11,5 | 8,7 | 150 | 31,30 | 7 | 4,0 | 1/16-27 NPT | N.1L | CM109 | MS1034 | 1.5 mm |
NOTE: Minimum bore capability varies with depth of groove. See pages E86–E87 for details. F dimension measured over sharp point of insert.
