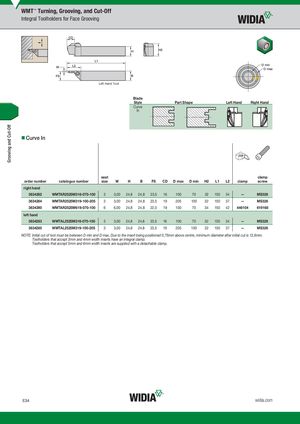

Integral Toolholders for Face Grooving
Left Hand Tool
Blade
Style Part Shape Left Hand Right Hand
Curve In
Curve In
seat clamp
| order number | catalogue number size | W | H | B | FS | CD | D max | D min | H2 | L1 | L2 | clamp | screw | ||
| right hand | |||||||||||||||
| 3634282 | WMTAR2525M316-070-100 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 16 | 100 | 70 | 32 | 150 | 34 | — | MS326 | |
| 3634284 | WMTAR2525M319-100-205 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 19 | 205 | 100 | 32 | 150 | 37 | — | MS326 | |
| 3634290 | WMTAR2525M619-070-100 | 6 | 6,00 | 24,8 | 24,8 | 22,0 | 19 | 100 | 70 | 34 | 150 | 42 | 446104 | 619168 | |
| left hand | |||||||||||||||
| 3634283 | WMTAL2525M316-070-100 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 16 | 100 | 70 | 32 | 150 | 34 | — | MS326 | |
| 3634285 | WMTAL2525M319-100-205 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 19 | 205 | 100 | 32 | 150 | 37 | — | MS326 |
NOTE: Initial cut of tool must be between D min and D max. Due to the insert being positioned 0,75mm above centre, minimum diameter after initial cut is 12,6mm. Toolholders that accept 3mm and 4mm width inserts have an integral clamp. Toolholders that accept 5mm and 6mm width inserts are supplied with a detachable clamp.
