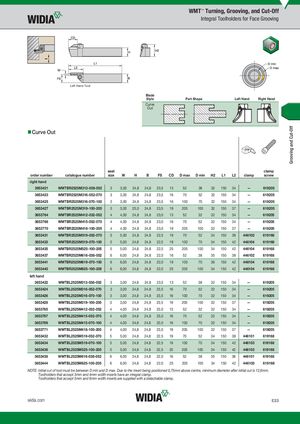

Integral Toolholders for Face Grooving
Left Hand Tool
Blade
Style Part Shape Left Hand Right Hand
Curve Out
Curve Out
| order number | catalogue number | seat size | W | H | B | FS | CD | D max | D min | H2 | L1 | L2 | clamp | clamp screw |
| right hand | ||||||||||||||
| 3653421 | WMTBR2525M313-038-052 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 13 | 52 | 38 | 32 | 150 | 34 | — | 619205 |
| 3653423 | WMTBR2525M316-052-070 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 16 | 70 | 52 | 32 | 150 | 34 | — | 619205 |
| 3653425 | WMTBR2525M316-070-100 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 16 | 100 | 70 | 32 | 150 | 34 | — | 619205 |
| 3653427 | WMTBR2525M319-100-205 | 3 | 3,00 | 25,0 | 24,8 | 23,5 | 19 | 205 | 100 | 32 | 150 | 37 | — | 619205 |
| 3653764 | WMTBR2525M412-032-052 | 4 | 4,00 | 24,8 | 24,8 | 23,0 | 13 | 52 | 32 | 32 | 150 | 34 | — | 619205 |
| 3653766 | WMTBR2525M415-052-070 | 4 | 4,00 | 24,8 | 24,8 | 23,0 | 16 | 70 | 52 | 32 | 150 | 34 | — | 619205 |
| 3653770 | WMTBR2525M418-100-205 | 4 | 4,00 | 24,8 | 24,8 | 23,0 | 19 | 205 | 100 | 32 | 150 | 37 | — | 619205 |
| 3653431 | WMTBR2525M519-052-070 | 5 | 5,00 | 24,8 | 24,8 | 22,5 | 19 | 70 | 52 | 34 | 150 | 38 | 446102 | 619168 |
| 3653433 | WMTBR2525M519-070-100 | 5 | 5,00 | 24,8 | 24,8 | 22,5 | 19 | 100 | 70 | 34 | 150 | 42 | 446104 | 619168 |
| 3653435 | WMTBR2525M525-100-205 | 5 | 5,00 | 24,8 | 24,8 | 22,5 | 25 | 205 | 100 | 34 | 150 | 42 | 446104 | 619168 |
| 3653437 | WMTBR2525M616-038-052 | 6 | 6,00 | 24,8 | 24,8 | 22,0 | 16 | 52 | 38 | 35 | 150 | 38 | 446102 | 619168 |
| 3653441 | WMTBR2525M619-070-100 | 6 | 6,00 | 24,8 | 24,8 | 22,0 | 19 | 100 | 70 | 36 | 150 | 42 | 446104 | 619168 |
| 3653443 | WMTBR2525M625-100-205 | 6 | 6,00 | 24,8 | 24,8 | 22,0 | 25 | 205 | 100 | 34 | 150 | 42 | 446104 | 619168 |
| left hand | ||||||||||||||
| 3653422 | WMTBL2525M313-038-052 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 13 | 52 | 38 | 32 | 150 | 34 | — | 619205 |
| 3653424 | WMTBL2525M316-052-070 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 16 | 70 | 52 | 32 | 150 | 34 | — | 619205 |
| 3653426 | WMTBL2525M316-070-100 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 16 | 100 | 70 | 32 | 150 | 34 | — | 619205 |
| 3653428 | WMTBL2525M319-100-205 | 3 | 3,00 | 24,8 | 24,8 | 23,5 | 19 | 205 | 100 | 32 | 150 | 37 | — | 619205 |
| 3653765 | WMTBL2525M412-032-052 | 4 | 4,00 | 24,8 | 24,8 | 23,0 | 13 | 52 | 32 | 32 | 150 | 34 | — | 619205 |
| 3653767 | WMTBL2525M415-052-070 | 4 | 4,00 | 24,8 | 24,8 | 23,0 | 16 | 70 | 52 | 32 | 150 | 34 | — | 619205 |
| 3653769 | WMTBL2525M415-070-100 | 4 | 4,00 | 24,8 | 24,8 | 23,0 | 16 | 100 | 70 | 32 | 150 | 34 | — | 619205 |
| 3653771 | WMTBL2525M418-100-205 | 4 | 4,00 | 24,8 | 24,8 | 23,0 | 19 | 205 | 100 | 32 | 150 | 37 | — | 619205 |
| 3653432 | WMTBL2525M519-052-070 | 5 | 5,00 | 24,8 | 24,8 | 22,5 | 19 | 70 | 52 | 34 | 150 | 38 | 446101 | 619168 |
| 3653434 | WMTBL2525M519-070-100 | 5 | 5,00 | 24,8 | 24,8 | 22,5 | 19 | 100 | 70 | 34 | 150 | 42 | 446103 | 619168 |
| 3653436 | WMTBL2525M525-100-205 | 5 | 5,00 | 24,8 | 24,8 | 22,5 | 25 | 205 | 100 | 34 | 150 | 42 | 446103 | 619168 |
| 3653438 | WMTBL2525M616-038-052 | 6 | 6,00 | 24,8 | 24,8 | 22,0 | 16 | 52 | 38 | 35 | 150 | 38 | 446101 | 619168 |
| 3653444 | WMTBL2525M625-100-205 | 6 | 6,00 | 24,8 | 24,8 | 22,0 | 25 | 205 | 100 | 34 | 150 | 42 | 446103 | 619168 |
