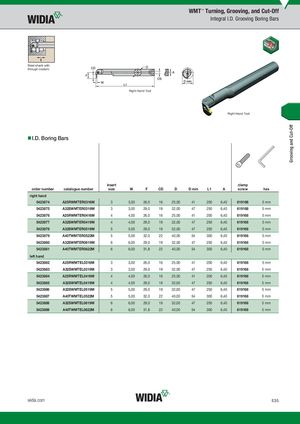

Общий каталог Widia 2017 - страница 499
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
Integral I.D. Grooving Boring Bars
Steel shank with through coolant.
Right Hand Tool
Right Hand Tool
I.D. Boring Bars
insert clamp
| order number | catalogue number | insert size | W | F | CD | D | D min | L1 | A | clamp screw | hex |
| right hand | |||||||||||
| 5423874 | A25RWMTER0316M | 3 | 3,00 | 26,0 | 16 | 25,00 | 41 | 200 | 6,40 | 619168 | 5 mm |
| 5423875 | A32SWMTER0319M | 3 | 3,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423876 | A25RWMTER0416M | 4 | 4,00 | 26,0 | 16 | 25,00 | 41 | 200 | 6,40 | 619168 | 5 mm |
| 5423877 | A32SWMTER0419M | 4 | 4,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423878 | A32SWMTER0519M | 5 | 5,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423879 | A40TWMTER0522M | 5 | 5,00 | 32,0 | 22 | 40,00 | 54 | 300 | 6,40 | 619168 | 5 mm |
| 5423880 | A32SWMTER0619M | 6 | 6,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423881 | A40TWMTER0622M | 6 | 6,00 | 31,8 | 22 | 40,00 | 54 | 300 | 6,40 | 619168 | 5 mm |
| left hand | |||||||||||
| 5423882 | A25RWMTEL0316M | 3 | 3,00 | 26,0 | 16 | 25,00 | 41 | 200 | 6,40 | 619168 | 5 mm |
| 5423883 | A32SWMTEL0319M | 3 | 3,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423884 | A25RWMTEL0416M | 4 | 4,00 | 26,0 | 16 | 25,00 | 41 | 200 | 6,40 | 619168 | 5 mm |
| 5423885 | A32SWMTEL0419M | 4 | 4,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423886 | A32SWMTEL0519M | 5 | 5,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423887 | A40TWMTEL0522M | 5 | 5,00 | 32,0 | 22 | 40,00 | 54 | 300 | 6,40 | 619168 | 5 mm |
| 5423888 | A32SWMTEL0619M | 6 | 6,00 | 29,0 | 19 | 32,00 | 47 | 250 | 6,40 | 619168 | 5 mm |
| 5423889 | A40TWMTEL0622M | 6 | 6,00 | 31,8 | 22 | 40,00 | 54 | 300 | 6,40 | 619168 | 5 mm |
