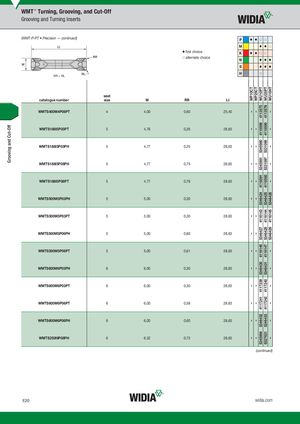

Общий каталог Widia 2017 - страница 484
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| recson — connue) | P � � � � M � � � | ||||
| �first choice | K � � � � | ||||
| �alternate choice | N � � � | ||||
| S � � � | |||||
| RR = RL | H � | ||||
| catalogue number | seat size | W | RR | LI | WP10CT WP25CT WU10PT WU25PT WU10HT |
| WMTS400M4P06PT | 4 | 4,00 | 0,60 | 25,40 | – – 4113575 4113576 – |
| WMTS188I5P03PT | 5 | 4,76 | 0,26 | 28,63 | – – 4118589 4118590 – |
| WMTS188I5P03PH | 5 | 4,77 | 0,25 | 28,63 | – – 5345980 5331095 – |
| WMTS188I5P08PH | 5 | 4,77 | 0,75 | 28,63 | – – 5345981 5331097 – |
| WMTS188I5P08PT | 5 | 4,77 | 0,76 | 28,63 | – – 4118591 4118592 – |
| WMTS500M5P03PH | 5 | 5,00 | 0,30 | 28,63 | – – 5346424 5346425 5346426 |
| WMTS500M5P03PT | 5 | 5,00 | 0,30 | 28,63 | – – 4116143 4116144 4116145 |
| WMTS500M5P06PH | 5 | 5,00 | 0,60 | 28,63 | – – 5346427 5346428 5346429 |
| WMTS500M5P06PT | 5 | 5,00 | 0,61 | 28,63 | – – 4116146 4116147 – |
| WMTS600M6P03PH | 6 | 6,00 | 0,30 | 28,63 | – – 5346430 5346431 – |
| WMTS600M6P03PT | 6 | 6,00 | 0,30 | 28,63 | – – 4117239 4117240 – |
| WMTS600M6P06PT | 6 | 6,00 | 0,58 | 28,63 | – – 4117241 4117242 – |
| WMTS600M6P06PH | 6 | 6,00 | 0,60 | 28,63 | – – 5346432 5346433 – |
| WMTS250I6P08PH | 6 | 6,32 | 0,75 | 28,63 | – – 5345984 5327621 – |
