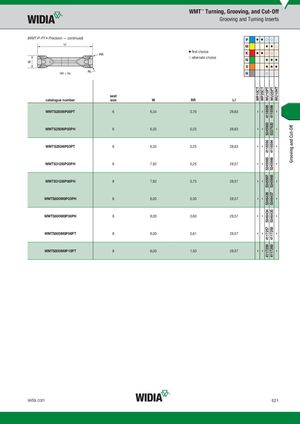

Общий каталог Widia 2017 - страница 485
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| (WMT-P-PT • Precision — continued) | P | � � � � | |||
| M | � � � | ||||
| �first choice | K | � � � � | |||
| �alternate choice | N | � � � | |||
| S | � � � | ||||
| RR = RL | H | � | |||
| catalogue number seat size | W | RR | LI | WP10CT WP25CT WU10PT WU25PT WU10HT | |
| WMTS250I6P08PT 6 | 6,34 | 0,76 | 28,63 | – – 4118595 4118596 – | |
| WMTS250I6P03PH 6 | 6,35 | 0,25 | 28,63 | – – 5345983 5327620 – | |
| WMTS250I6P03PT 6 | 6,35 | 0,25 | 28,63 | – – 4118593 4118594 – | |
| WMTS312I8P03PH 8 | 7,92 | 0,25 | 28,57 | – – 5345985 5345986 – | |
| WMTS312I8P08PH 8 | 7,92 | 0,75 | 28,57 | – – 5345987 5345988 – | |
| WMTS800M8P03PH 8 | 8,00 | 0,30 | 28,57 | – – 5346436 5346437 – | |
| WMTS800M8P06PH 8 | 8,00 | 0,60 | 28,57 | – – 5346434 5346435 – | |
| WMTS800M8P06PT 8 | 8,00 | 0,61 | 28,57 | – – 4117257 4117258 – | |
| WMTS800M8P15PT 8 | 8,00 | 1,50 | 28,57 | – – 4117259 4117260 – |
