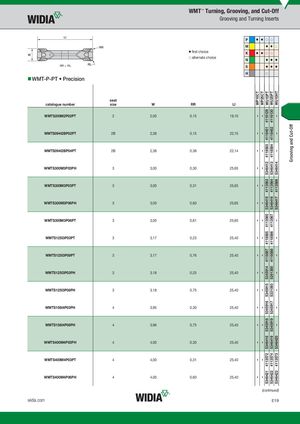

Общий каталог Widia 2017 - страница 483
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| P � � � � M � � � | |||||
| �first choice | K � � � � | ||||
| �alternate choice | N � � � | ||||
| -P-PT • Precision catalogue number RR = RL | seat size | W | RR | LI | S � � � H � WP10CT WP25CT WU10PT WU25PT WU10HT |
| WMTS200M2P02PT WMTS094I2BP02PT | 2 2B | 2,00 2,38 | 0,15 0,15 | 19,10 22,15 | – – 4116129 4116130 – – – 4118451 4118452 – |
| WMTS094I2BP04PT | 2B | 2,38 | 0,38 | 22,14 | – – 4118583 4118584 – |
| WMTS300M3P03PH | 3 | 3,00 | 0,30 | 25,65 | – – 5346412 5346413 5346414 |
| WMTS300M3P03PT | 3 | 3,00 | 0,31 | 25,65 | – – 4113563 4113564 4113566 |
| WMTS300M3P06PH | 3 | 3,00 | 0,60 | 25,65 | – – 5346415 5346416 5346417 |
| WMTS300M3P06PT | 3 | 3,00 | 0,61 | 25,65 | – – 4113565 4113567 – |
| WMTS125I3P03PT | 3 | 3,17 | 0,23 | 25,40 | – – 4118585 4118586 – |
| WMTS125I3P08PT WMTS125I3P03PH | 3 3 | 3,17 3,18 | 0,76 0,25 | 25,40 25,40 | – – 4118587 4118588 – – – 5345914 5291300 – |
| WMTS125I3P08PH | 3 | 3,18 | 0,75 | 25,40 | – – 5345915 5331093 – |
| WMTS156I4P03PH | 4 | 3,95 | 0,30 | 25,40 | – – 5345916 5345917 – |
| WMTS156I4P08PH | 4 | 3,96 | 0,75 | 25,40 | – – 5345918 5345919 – |
| WMTS400M4P03PH | 4 | 4,00 | 0,30 | 25,40 | – – 5346418 5346419 5346420 |
| WMTS400M4P03PT | 4 | 4,00 | 0,31 | 25,40 | – – 4113572 4113574 4113573 |
| WMTS400M4P06PH | 4 | 4,00 | 0,60 | 25,40 | – – 5346421 5346422 5346423 |
