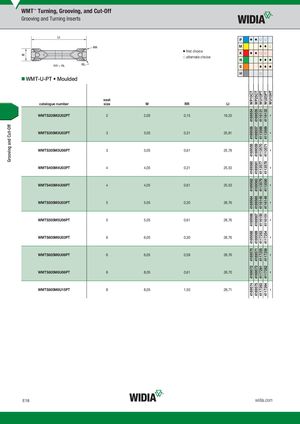

Общий каталог Widia 2017 - страница 482
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| P | � � � � | ||||
| M | � � � | ||||
| �first choice | K | � � � � | |||
| �alternate choice | N | � � � | |||
| -U-PT • Moulded catalogue number seat size RR = RL | W | RR | LI | S H | � � � � WP10CT WP25CT WU10PT WU25PT WU10HT |
| WMTS205M2U02PT 2 | 2,05 | 0,15 | 19,23 | 4169554 4169555 4116131 4116132 – | |
| WMTS305M3U03PT 3 | 3,05 | 0,31 | 25,81 | 4169556 4169557 4113568 4113569 – | |
| WMTS305M3U06PT 3 | 3,05 | 0,61 | 25,78 | 4169558 4169559 4113570 4113571 – | |
| WMTS405M4U03PT 4 | 4,05 | 0,31 | 25,53 | 4169560 4169561 4113577 4113578 – | |
| WMTS405M4U06PT 4 | 4,05 | 0,61 | 25,53 | 4169562 4169563 4113579 4113580 – | |
| WMTS505M5U03PT 5 | 5,05 | 0,30 | 28,76 | 4169564 4169565 4116148 4116149 – | |
| WMTS505M5U06PT 5 | 5,05 | 0,61 | 28,76 | 4169566 4169567 4116150 4116151 – | |
| WMTS605M6U03PT 6 | 6,05 | 0,30 | 28,76 | 4169568 4169569 4117253 4117254 – | |
| WMTS605M6U06PT 6 | 6,05 | 0,59 | 28,76 | 4169570 4169571 4117255 4117256 – | |
| WMTS805M8U06PT 8 | 8,05 | 0,61 | 28,70 | 4169572 4169573 4117261 4117262 – | |
| WMTS805M8U15PT 8 | 8,05 | 1,50 | 28,71 | 4169574 4169575 4117263 4117264 – |
