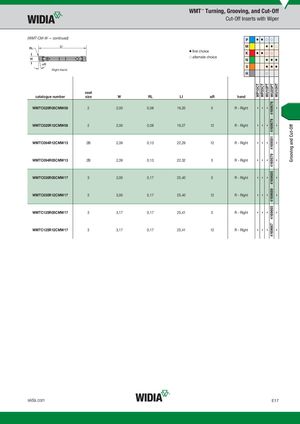

Cut-Off Inserts with Wiper
| (WMT-CM-W — continued) | P | � � � � | |||||
| �first | i choice | M K | � � � � � � � | ||||
| �alter | nate choice | N | � � � | ||||
| catalogue number Right Hand | seat size | W | RL | LI | �R | S H hand | � � � � WP10CT WP25CT WU10PT WU25PT WU10HT |
| WMTC020R05CMW08 | 2 | 2,00 | 0,08 | 19,20 | 5 | R - Right | – – – 4169676 – |
| WMTC020R12CMW08 | 2 | 2,00 | 0,08 | 19,27 | 12 | R - Right | – – – 4169679 – |
| WMTC094R12CMW13 | 2B | 2,39 | 0,13 | 22,29 | 12 | R - Right | – – – 4169581 – |
| WMTC094R05CMW13 | 2B | 2,39 | 0,13 | 22,32 | 5 | R - Right | – – – 4169579 – |
| WMTC030R05CMW17 | 3 | 3,00 | 0,17 | 25,40 | 5 | R - Right | – – – 4169685 – |
| WMTC030R12CMW17 | 3 | 3,00 | 0,17 | 25,40 | 12 | R - Right | – – – 4169689 – |
| WMTC125R05CMW17 | 3 | 3,17 | 0,17 | 25,41 | 5 | R - Right | – – – 4169665 – |
| WMTC125R12CMW17 | 3 | 3,17 | 0,17 | 25,41 | 12 | R - Right | – – – 4169667 – |
