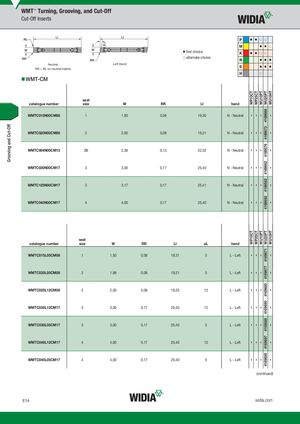

Cut-Off Inserts
| P | � � | � � | ||||||||
| �fir | ist choice | M K | � � | � � � � � | ||||||
| Neutral RR = RL on neutral inserts | Left | Hand | �al | ternate choice | N S | � � � � � � | ||||
| WMT-CM | H | � | ||||||||
| catalogue number | seat size | W | RR | LI | hand | WP10CT WP25CT | WU10PT WU25PT WU10HT | |||
| WMTC015N00CM08 | 1 | 1,50 | 0,08 | 19,30 | N - Neutral | – – | – 4169668 – | |||
| WMTC020N00CM08 | 2 | 2,00 | 0,08 | 19,21 | N - Neutral | – – | – 4169673 – | |||
| WMTC094N00CM13 | 2B | 2,39 | 0,13 | 22,32 | N - Neutral | – – | – 4169576 – | |||
| WMTC030N00CM17 | 3 | 3,00 | 0,17 | 25,40 | N - Neutral | – – | – 4169682 – | |||
| WMTC125N00CM17 | 3 | 3,17 | 0,17 | 25,41 | N - Neutral | – – | – 4169582 – | |||
| WMTC040N00CM17 | 4 | 4,00 | 0,17 | 25,40 | N - Neutral | – – | – 4169692 – | |||
| catalogue number | seat size | W | RR | LI | �L | hand | WP10CT WP25CT | WU10PT WU25PT WU10HT | ||
| WMTC015L05CM08 | 1 | 1,50 | 0,08 | 19,31 | 5 | L - Left | – – | – 4169671 – | ||
| WMTC020L05CM08 | 2 | 1,99 | 0,08 | 19,21 | 5 | L - Left | – – | – 4169677 – | ||
| WMTC020L12CM08 | 2 | 2,00 | 0,08 | 19,25 | 12 | L - Left | – – | – 4169680 – | ||
| WMTC030L12CM17 | 3 | 3,00 | 0,17 | 25,40 | 12 | L - Left | – – | – 4169690 – | ||
| WMTC030L05CM17 | 3 | 3,00 | 0,17 | 25,40 | 5 | L - Left | – – | – 4169686 – | ||
| WMTC040L12CM17 | 4 | 4,00 | 0,17 | 25,40 | 12 | L - Left | – – | – 4169697 – | ||
| WMTC040L05CM17 | 4 | 4,00 | 0,17 | 25,40 | 5 | L - Left | – – | – 4169695 – |
