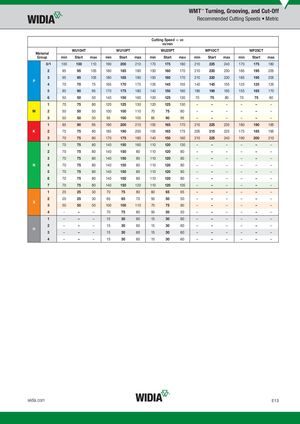

Общий каталог Widia 2017 - страница 477
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| Cutti | ng Speed m/min | — vc | ||||||||||||||
| Mate | rial | WU10HT | WU10PT | WU25PT | WP10CT | WP25CT | ||||||||||
| Grou | p | min | Start | max | min | Start | max | min | Start | max | min | Start | max | min | Start | max |
| 0/1 | 100 | 100 | 110 | 190 | 200 | 210 | 170 | 175 | 180 | 210 | 225 | 240 | 170 | 175 | 180 | |
| 2 | 95 | 95 | 105 | 180 | 185 | 190 | 150 | 160 | 170 | 210 | 220 | 230 | 185 | 195 | 205 | |
| 3 | 95 | 95 | 105 | 180 | 185 | 190 | 150 | 160 | 170 | 210 | 220 | 230 | 185 | 195 | 205 | |
| P | 4 | 70 | 70 | 75 | 165 | 170 | 175 | 135 | 145 | 155 | 140 | 145 | 155 | 125 | 125 | 135 |
| 5 | 85 | 90 | 95 | 170 | 175 | 180 | 140 | 150 | 160 | 180 | 190 | 195 | 155 | 165 | 170 | |
| 6 | 50 | 50 | 50 | 140 | 150 | 160 | 120 | 125 | 130 | 70 | 75 | 80 | 70 | 75 | 80 | |
| 1 | 70 | 75 | 80 | 120 | 125 | 130 | 120 | 125 | 130 | – | – | – | – | – | – | |
| M | 2 | 50 | 50 | 50 | 100 | 100 | 110 | 70 | 75 | 80 | – | – | – | – | – | – |
| 3 | 50 | 50 | 50 | 95 | 100 | 105 | 85 | 90 | 95 | – | – | – | – | – | – | |
| 1 | 85 | 90 | 95 | 190 | 200 | 210 | 155 | 165 | 170 | 215 | 225 | 235 | 180 | 190 | 195 | |
| K | 2 | 75 | 75 | 80 | 185 | 190 | 200 | 155 | 165 | 175 | 205 | 215 | 225 | 175 | 185 | 195 |
| 3 | 70 | 75 | 80 | 170 | 175 | 180 | 140 | 150 | 160 | 210 | 225 | 240 | 190 | 200 | 210 | |
| 1 | 70 | 75 | 80 | 140 | 150 | 160 | 110 | 120 | 130 | – | – | – | – | – | – | |
| 2 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – | |
| 3 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – | |
| N | 4 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – |
| 5 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – | |
| 6 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – | |
| 7 | 70 | 75 | 80 | 140 | 150 | 120 | 110 | 120 | 105 | – | – | – | – | – | – | |
| 1 | 20 | 25 | 30 | 70 | 75 | 80 | 60 | 65 | 65 | – | – | – | – | – | – | |
| 2 | 20 | 25 | 30 | 65 | 65 | 70 | 50 | 50 | 50 | – | – | – | – | – | – | |
| S | 3 | 50 | 50 | 50 | 100 | 100 | 110 | 70 | 75 | 80 | – | – | – | – | – | – |
| 4 | - | – | – | 70 | 75 | 80 | 50 | 50 | 50 | – | – | – | – | – | – | |
| 1 | – | – | – | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | – | – | – | |
| 2 | – | – | – | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | – | – | – | |
| H | 3 | – | – | – | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | – | – | – |
| 4 | – | – | – | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | – | – | – |
