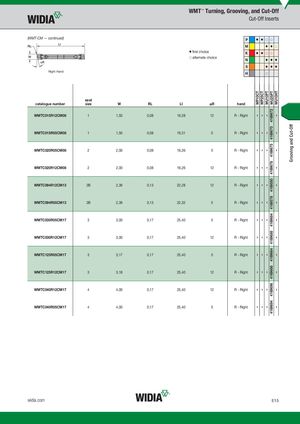

Cut-Off Inserts
| - — connue) | P M | � � � � � � � | |||||
| Right Hand | �first �alte | i choice rnate choice | K N S H | � � � � � � � � � � � | |||
| catalogue number | seat size | W | RL | LI | �R | hand | WP10CT WP25CT WU10PT WU25PT WU10HT |
| WMTC015R12CM08 | 1 | 1,50 | 0,08 | 19,28 | 12 | R - Right | – – – 4169672 – |
| WMTC015R05CM08 | 1 | 1,50 | 0,08 | 19,31 | 5 | R - Right | – – – 4169670 – |
| WMTC020R05CM08 | 2 | 2,00 | 0,08 | 19,26 | 5 | R - Right | – – – 4169675 – |
| WMTC020R12CM08 | 2 | 2,00 | 0,08 | 19,26 | 12 | R - Right | – – – 4169678 – |
| WMTC094R12CM13 | 2B | 2,39 | 0,13 | 22,28 | 12 | R - Right | – – – 4169580 – |
| WMTC094R05CM13 | 2B | 2,39 | 0,13 | 22,32 | 5 | R - Right | – – – 4169578 – |
| WMTC030R05CM17 | 3 | 3,00 | 0,17 | 25,40 | 5 | R - Right | – – – 4169684 – |
| WMTC030R12CM17 | 3 | 3,00 | 0,17 | 25,40 | 12 | R - Right | – – – 4169688 – |
| WMTC125R05CM17 | 3 | 3,17 | 0,17 | 25,40 | 5 | R - Right | – – – 4169664 – |
| WMTC125R12CM17 | 3 | 3,18 | 0,17 | 25,40 | 12 | R - Right | – – – 4169666 – |
| WMTC040R12CM17 | 4 | 4,00 | 0,17 | 25,40 | 12 | R - Right | – – – 4169696 – |
| WMTC040R05CM17 | 4 | 4,00 | 0,17 | 25,40 | 5 | R - Right | – – – 4169694 – |
