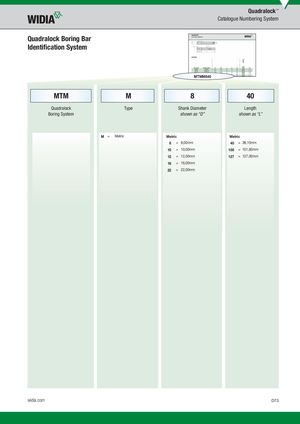

Quadralock Boring Bar
Identifi cation System
MTMM840
| MTM | M | 8 | 40 | |
| Quadralock | Type | Shank Diameter | Length |
Boring System shown as “D” shown as “L”
| M | = | Metric | Metric | Metric | ||
| 8 | = 8,00mm | 40 | = 38,10mm | |||
| 10 | = 10,00mm | 100 | = 101,60mm | |||
| 12 | = 12,00mm | 127 | = 127,00mm |
16 = 16,00mm 22 = 22,00mm
WID_Master16_Turning_Circle_D072_D073_Metric_REBRAND.indd 73 L V i WID M 16 T i Ci l D072 D073 M i REBRANDN b 11201512 24PM11/11/15 5:33 PM
