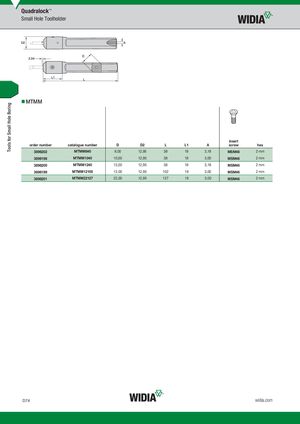

Small Hole Toolholder
MTMM
| order number | catalogue number | D | D2 | L | L1 | A | insert screw | hex |
| 3896202 | MTMM840 | 8,00 | 12,95 | 38 | 19 | 3,18 | MSM46 | 2 mm |
| 3896198 | MTMM1040 | 10,00 | 12,95 | 38 | 19 | 3,00 | MSM46 | 2 mm |
| 3896200 | MTMM1240 | 12,00 | 12,95 | 38 | 19 | 3,18 | MSM46 | 2 mm |
| 3896199 | MTMM12100 | 12,00 | 12,95 | 102 | 19 | 3,00 | MSM46 | 2 mm |
| 3896201 | MTMM22127 | 22,00 | 12,95 | 127 | 19 | 3,00 | MSM46 | 2 mm |
