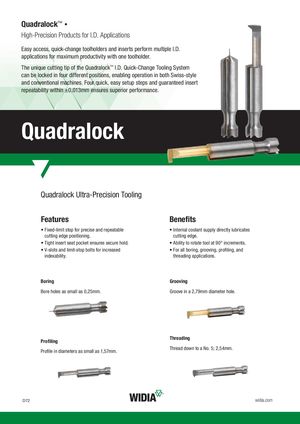

Общий каталог Widia 2017 - страница 442

Quadralock™

High-Precision Products for I.D. Applications

Easy access, quick-change toolholders and inserts perform multiple I.D. applications for maximum productivity with one toolholder.

The unique cutting tip of the Quadralock™ I.D. Quick-Change Tooling System

can be locked in four different positions, enabling operation in both Swiss-style

and conventional machines. Four quick, easy setup steps and guaranteed insert

repeatability within ±0,013mm ensures superior performance.

Quadralock

Quadralock Ultra-Precision Tooling

Features Benefi ts

• Fixed-limit stop for precise and repeatable
• Internal coolant supply directly lubricates

cutting edge positioning. cutting edge.

• Tight insert seat pocket ensures secure hold.
• Ability to rotate tool at 90° increments.
• V-slots and limit-stop bolts for increased
• For all boring, grooving, profi ling, and

indexability. threading applications.

Boring Grooving Bore holes as small as 0,25mm. Groove in a 2,79mm diameter hole.

Profi ling Profi le in diameters as small as 1,57mm.

Threading Thread down to a No. 5; 2,54mm.
