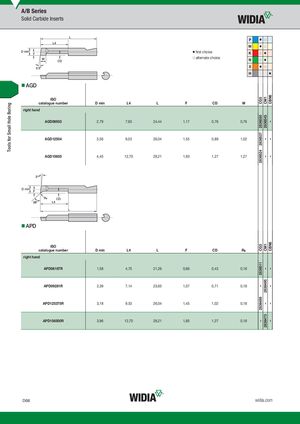

- AGD
ISO catalogue number right hand
AGD09503
D min
2,79
L4
7,93
L
24,44
F
1,17
first choice alternate choice
CD
0,76
P M K N S H
W
0,76
AGD12504 3,56 9,53 26,04 1,55 0,89 1,02
AGD15605 4,45 12,70 29,21 1,93 1,27 1,27
- APD
ISO
| catalogue number | D min | L4 | L | F | CD | R¡ | ||
| right hand | ||||||||
| APD06187R | 1,58 | 4,75 | 21,26 | 0,66 | 0,43 | 0,18 |
APD09281R 2,39 7,14 23,65 1,07 0,71 0,18
APD125375R 3,18 9,53 26,04 1,45 1,02 0,18
APD156500R 3,96 12,70 29,21 1,85 1,27 0,18
