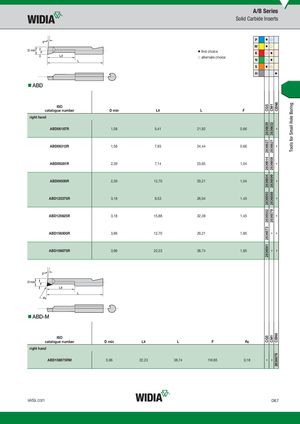

first choice alternate choice
- ABD
P M K N S H
ISO
| catalogue number | D min | L4 | L | F | ||
| right hand | ||||||
| ABD06187R | 1,58 | 5,41 | 21,92 | 0,66 |
ABD06312R 1,58 7,93 24,44 0,66
ABD09281R 2,39 7,14 23,65 1,04
ABD09500R 2,39 12,70 29,21 1,04
ABD125375R 3,18 9,53 26,04 1,45
ABD125625R 3,18 15,88 32,39 1,45
ABD156500R 3,96 12,70 29,21 1,85
ABD156875R 3,96 22,23 38,74 1,85
- ABD-M
ISO
| catalogue number | D min | L4 | L | F | R¡ | |
| right hand | ||||||
| ABD156875RM | 3,96 | 22,23 | 38,74 | 1W,85 | 0,18 |
