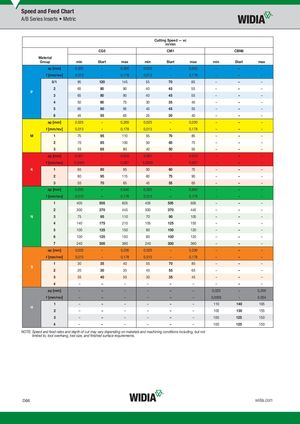

A/B Series Inserts • Metric
| Cu | tting Speed — m/min | vc | |||||||
| CG5 | CM1 | CBN6 | |||||||
| Material Group | min | Start | max | min | Start | max | min | Start | max |
| ap [mm] | 0,025 | - | 0,200 | 0,025 | - | 0,203 | – | – | – |
| f [mm/rev] | 0,013 | - | 0,178 | 0,013 | - | 0,178 | – | – | – |
| 0/1 | 95 | 120 | 145 | 55 | 70 | 85 | – | – | – |
| 2 | 65 | 80 | 90 | 40 | 45 | 55 | – | – | – |
| P 3 | 65 | 80 | 90 | 40 | 45 | 55 | – | – | – |
| 4 | 50 | 60 | 75 | 30 | 35 | 45 | – | – | – |
| 5 | 65 | 80 | 95 | 40 | 45 | 55 | – | – | – |
| 6 | 45 | 55 | 65 | 25 | 30 | 40 | – | – | – |
| ap [mm] | 0,025 | - | 0,200 | 0,025 | - | 0,200 | – | – | – |
| f [mm/rev] | 0,013 | - | 0,178 | 0,013 | - | 0,178 | – | – | – |
| M 1 | 75 | 95 | 110 | 55 | 70 | 85 | – | – | – |
| 2 | 70 | 85 | 100 | 50 | 65 | 75 | – | – | – |
| 3 | 55 | 65 | 80 | 40 | 50 | 55 | – | – | – |
| ap [mm] | 0,001 | - | 0,010 | 0,001 | - | 0,010 | – | – | – |
| K f [mm/rev] 1 | 0,0005 65 | - 80 | 0,007 95 | 0,0005 50 | - 60 | 0,007 75 | – – | – – | – – |
| 2 | 80 | 95 | 115 | 60 | 75 | 90 | – | – | – |
| 3 | 55 | 70 | 85 | 45 | 55 | 65 | – | – | – |
| ap [mm] | 0,025 | – | 0,640 | 0,025 | – | 0,640 | – | – | – |
| f [mm/rev] 1 | 0,013 405 | – 505 | 0,178 605 | 0,013 405 | – 505 | 0,178 605 | – – | – – | – – |
| 2 | 300 | 370 | 445 | 300 | 370 | 445 | – | – | – |
| N 3 | 75 | 95 | 110 | 70 | 90 | 105 | – | – | – |
| 4 | 140 | 175 | 210 | 105 | 125 | 155 | – | – | – |
| 5 | 100 | 125 | 150 | 80 | 100 | 120 | – | – | – |
| 6 | 100 | 125 | 150 | 80 | 100 | 120 | – | – | – |
| 7 | 240 | 300 | 360 | 240 | 300 | 360 | – | – | – |
| ap [mm] | 0,025 | - | 0,200 | 0,025 | - | 0,200 | – | – | – |
| f [mm/rev] | 0,013 | - | 0,178 | 0,013 | - | 0,178 | – | – | – |
| 1 | 30 | 35 | 40 | 55 | 70 | 85 | – | – | – |
| S 2 | 20 | 30 | 35 | 45 | 55 | 65 | – | – | – |
| 3 | 35 | 40 | 50 | 30 | 35 | 45 | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – |
| ap [mm] | – | – | – | – | – | – | 0,025 | - | 0,200 |
| f [mm/rev] | – | – | – | – | – | – | 0,0005 | - | 0,004 |
| 1 | – | – | – | – | – | – | 110 | 140 | 165 |
| H 2 | – | – | – | – | – | – | 105 | 130 | 155 |
| 3 | – | – | – | – | – | – | 100 | 125 | 150 |
| 4 | – | – | – | – | – | – | 100 | 125 | 150 |
