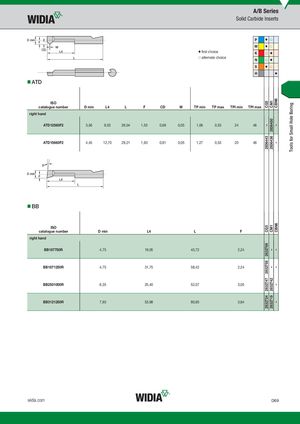

ISO
| catalogue number | D min | L4 | L | F | CD | W | TP min | TP max | TPI min | TPI max | ||||
| right hand | ||||||||||||||
| ATD12560F2 | 3,56 | 9,53 | 26,04 | 1,55 | 0,69 | 0,05 | 1,06 | 0,53 | 24 | 48 |
ATD15660F2 4,45 12,70 29,21 1,93 0,81 0,05 1,27 0,53 20 48
- BB
ISO
| catalogue number | D min | L4 | L | F | ||
| right hand | ||||||
| BB187750R | 4,75 | 19,05 | 45,72 | 2,24 |
BB1871250R 4,75 31,75 58,42 2,24
BB2501000R 6,35 25,40 52,07 3,05
BB3121250R 7,93 53,98 80,65 3,84
