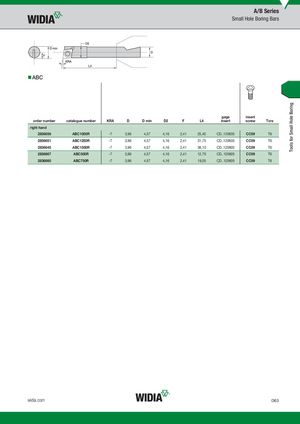

ABC
| order number | catalogue number | KRA | D | D min | D2 | F | L4 | gage insert | insert screw | Torx |
| right hand | ||||||||||
| 2836656 | ABC1000R | -7 | 3,96 | 4,57 | 4,16 | 2,41 | 25,40 | CD..120605 | CC09 | T6 |
| 2836651 | ABC1250R | -7 | 3,96 | 4,57 | 4,16 | 2,41 | 31,75 | CD..120605 | CC09 | T6 |
| 2836645 | ABC1500R | -7 | 3,96 | 4,57 | 4,16 | 2,41 | 38,10 | CD..120605 | CC09 | T6 |
| 2836667 | ABC500R | -7 | 3,96 | 4,57 | 4,16 | 2,41 | 12,70 | CD..120605 | CC09 | T6 |
| 2836660 | ABC750R | -7 | 3,96 | 4,57 | 4,16 | 2,41 | 19,05 | CD..120605 | CC09 | T6 |
