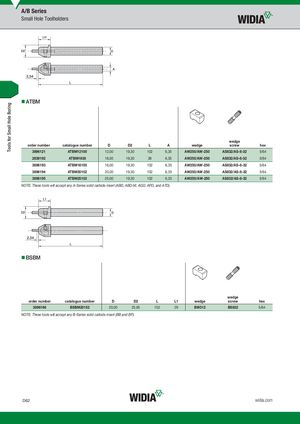

Small Hole Toolholders
- ATBM
wedge
| order number | catalogue number | D | D2 | L | A | wedge | screw hex | |
| 3896121 | ATBM12100 | 12,00 | 19,30 | 102 | 6,35 | AW250/AW-250 | AS832/AS-8-32 | 5/64 |
| 2839192 | ATBM1638 | 16,00 | 19,30 | 38 | 6,35 | AW250/AW-250 | AS832/AS-8-32 | 5/64 |
| 3896193 | ATBM16100 | 16,00 | 19,30 | 102 | 6,35 | AW250/AW-250 | AS832/AS-8-32 | 5/64 |
| 3896194 | ATBM20102 | 20,00 | 19,30 | 102 | 6,35 | AW250/AW-250 | AS832/AS-8-32 | 5/64 |
| 3896195 | ATBM25102 | 25,00 | 19,30 | 102 | 6,35 | AW250/AW-250 | AS832/AS-8-32 | 5/64 |
NOTE: These tools will accept any A-Series solid carbide insert (ABD, ABD-M, AGD, APD, and ATD).
- BSBM
wedge
| order number | catalogue number | D | D2 | L | L1 | wedge | screw | hex | ||
| 3896196 | BSBM20152 | 20,00 | 25,65 | 152 | 29 | BW312 | BS832 | 5/64 |
NOTE: These tools will accept any B-Series solid carbide insert (BB and BP).
