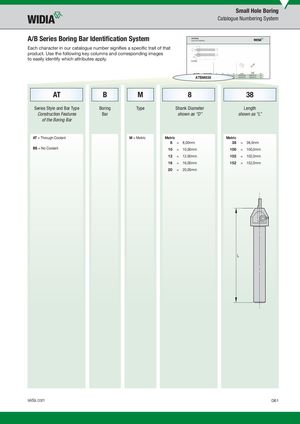

A/B Series Boring Bar Identifi cation System
Each character in our catalogue number signifi es a specifi c trait of that
product. Use the following key columns and corresponding images
to easily identify which attributes apply.
ATBM838
| AT | B | M | 8 | 38 | |||
| Series Style and Bar Type | Boring | Type | Shank Diameter | Length | |||
| Construction Features | Bar | shown as “D” | shown as “L” |
of the Boring Bar
AT = Through Coolant M = Metric Metric Metric
| 8 | = | 8,00mm | 38 | = | 38,0mm | |
| BS = No Coolant | 10 | = | 10,00mm | 100 | = | 100,0mm |
| 12 | = | 12,00mm | 102 | = | 102,0mm | |
| 16 | = | 16,00mm | 152 | = | 152,0mm | |
| 20 | = | 20,00mm |
L
