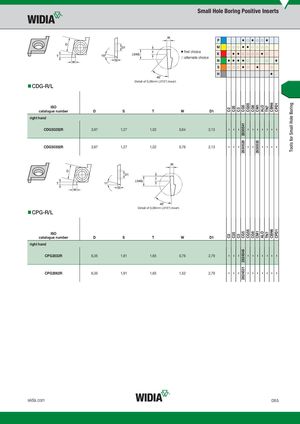

Detail of 0,38mm (.015") insert.
- CDG-R/L
first choice alternate choice
P M K N S H
ISO
| catalogue number | D | S | T | W | D1 | ||
| right hand | |||||||
| CDG50252R | 3,97 | 1,27 | 1,02 | 0,64 | 2,13 |
CDG50302R 3,97 1,27 1,02 0,76 2,13
Detail of 0,38mm (.015") insert.
- CPG-R/L
ISO
| catalogue number | D | S | T | W | D1 | ||
| right hand | |||||||
| CPG2032R | 6,35 | 1,91 | 1,65 | 0,76 | 2,79 |
CPG2062R 6,35 1,91 1,65 1,52 2,79
