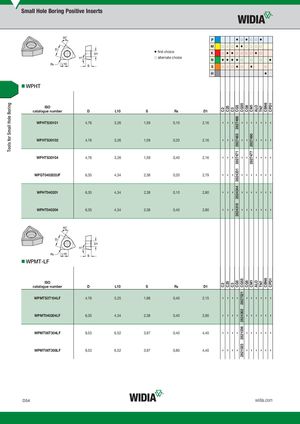

Общий каталог Widia 2017 - страница 424
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
80˚
- WPHT
first choice alternate choice
P M K N S H
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| WPHTS30101 | 4,76 | 3,26 | 1,59 | 0,10 | 2,16 |
WPHTS30102 4,76 3,26 1,59 0,20 2,16
WPHTS30104 4,76 3,26 1,59 0,40 2,16
WPGT040202UF 6,35 4,34 2,38 0,20 2,79
WPHT040201 6,35 4,34 2,38 0,10 2,80
WPHT040204 6,35 4,34 2,38 0,40 2,80
80˚
- WPMT-LF
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| WPMTS3T104LF | 4,76 | 3,25 | 1,98 | 0,40 | 2,15 |
WPMT040204LF 6,35 4,34 2,38 0,40 2,90
WPMT06T304LF 9,53 6,52 3,97 0,40 4,40
WPMT06T308LF 9,53 6,52 3,97 0,80 4,40
