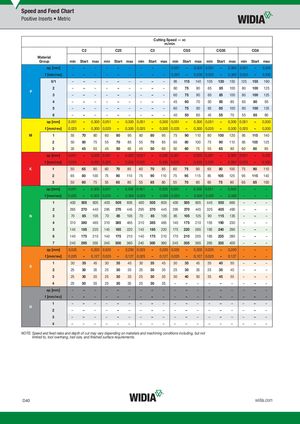

Positive Inserts • Metric
| Cu | tting Sp m/ | eed — min | vc | |||||||||||||||
| C2 | C25 | C3 | CG5 | CG55 | CG6 | |||||||||||||
| Material | ||||||||||||||||||
| Group | min | Start | max | min | Start | max | min | Start | max | min | Start | max | min | Start | max | min | Start | max |
| ap [mm] | – | – | – | – | – | – | – | – | – | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 |
| f [mm/rev] | – | – | – | – | – | – | – | – | – | 0,025 | – | 0,300 | 0,025 | – | 0,300 | 0,025 | – | 0,300 |
| 0/1 | – | – | – | – | – | – | – | – | – | 95 | 115 | 140 | 105 | 130 | 155 | 125 | 155 | 190 |
| P 2 | – | – | – | – | – | – | – | – | – | 60 | 75 | 90 | 65 | 85 | 100 | 80 | 100 | 125 |
| 3 | – | – | – | – | – | – | – | – | – | 60 | 75 | 90 | 65 | 85 | 100 | 80 | 100 | 125 |
| 4 | – | – | – | – | – | – | – | – | – | 45 | 60 | 70 | 50 | 65 | 80 | 65 | 80 | 95 |
| 5 | – | – | – | – | – | – | – | – | – | 60 | 75 | 90 | 65 | 85 | 100 | 80 | 100 | 125 |
| 6 | – | – | – | – | – | – | – | – | – | 40 | 50 | 60 | 45 | 55 | 70 | 55 | 65 | 80 |
| ap [mm] | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 |
| f [mm/rev] | 0,025 | – | 0,300 | 0,025 | – | 0,300 | 0,025 | – | 0,300 | 0,025 | – | 0,300 | 0,025 | – | 0,300 | 0,025 | – | 0,300 |
| M 1 | 55 | 70 | 80 | 60 | 80 | 95 | 60 | 80 | 95 | 75 | 90 | 110 | 80 | 100 | 120 | 95 | 115 | 140 |
| 2 | 50 | 60 | 75 | 55 | 70 | 85 | 55 | 70 | 85 | 65 | 80 | 100 | 75 | 90 | 110 | 85 | 105 | 125 |
| 3 | 35 | 45 | 55 | 45 | 50 | 65 | 45 | 50 | 65 | 50 | 60 | 75 | 55 | 65 | 80 | 60 | 80 | 95 |
| ap [mm] f [mm/rev] | 0,051 0025 | – – | 0,300 0300 | 0,051 0025 | – – | 0,300 0300 | 0,051 0025 | – – | 0,300 0300 | 0,051 0025 | – – | 0,300 0300 | 0,051 0025 | – – | 0,300 0300 | 0,051 0025 | – – | 0,300 0300 |
| K 1 | , 50 | 65 | , 80 | , 60 | 70 | , 85 | , 60 | 70 | , 85 | , 60 | 75 | , 90 | , 65 | 80 | , 100 | , 75 | 90 | , 110 |
| 2 | 65 | 80 | 100 | 75 | 90 | 110 | 75 | 90 | 110 | 75 | 95 | 115 | 85 | 105 | 125 | 95 | 115 | 140 |
| 3 | 50 | 60 | 75 | 55 | 65 | 80 | 55 | 65 | 80 | 55 | 70 | 80 | 60 | 75 | 90 | 65 | 85 | 100 |
| ap [mm] | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 | – | – | – |
| f [mm/rev] 1 | 0,025 400 | – 505 | 0,300 605 | 0,025 400 | – 505 | 0,300 605 | 0,025 400 | – 505 | 0,300 605 | 0,025 400 | – 505 | 0,300 605 | 0,025 445 | – 555 | 0,300 665 | – – | – – | – – |
| 2 | 295 | 370 | 440 | 295 | 370 | 445 | 295 | 370 | 445 | 295 | 370 | 445 | 325 | 405 | 490 | – | – | – |
| N 3 | 70 | 85 | 105 | 70 | 85 | 105 | 70 | 85 | 105 | 85 | 105 | 125 | 90 | 115 | 135 | – | – | – |
| 4 | 310 | 380 | 465 | 310 | 385 | 465 | 310 | 385 | 465 | 140 | 175 | 210 | 155 | 190 | 230 | – | – | – |
| 5 | 145 | 185 | 220 | 145 | 185 | 220 | 145 | 185 | 220 | 175 | 220 | 265 | 195 | 240 | 290 | – | – | – |
| 6 | 140 | 175 | 210 | 140 | 175 | 210 | 140 | 175 | 210 | 170 | 210 | 255 | 185 | 235 | 280 | – | – | – |
| 7 | 240 | 295 | 355 | 240 | 300 | 360 | 240 | 300 | 360 | 245 | 305 | 365 | 265 | 335 | 400 | – | – | – |
| ap [mm] | 0,025 | – | 0,200 | 0,025 | – | 0,200 | 0,025 | – | 0,200 | 0,025 | – | 0,200 | 0,025 | – | 0,200 | – | – | – |
| f [mm/rev] | 0,025 | – | 0,127 | 0,025 | – | 0,127 | 0,025 | – | 0,127 | 0,025 | – | 0,127 | 0,025 | – | 0,127 | – | – | – |
| S 1 | 30 | 35 | 45 | 30 | 35 | 45 | 30 | 35 | 45 | 30 | 35 | 45 | 35 | 40 | 50 | – | – | – |
| 2 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 35 | 40 | – | – | – |
| 3 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 30 | 35 | 30 | 40 | 50 | 35 | 45 | 55 | – | – | – |
| 4 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 30 | 35 | – | – | – | – | – | – | – | – | – |
| ap [mm] | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| f [mm/rev] | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| H 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 4 | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – |
