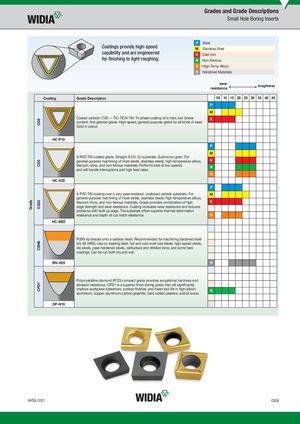

Small Hole Boring Inserts
Coating
HC-P10
HC-S25
HC-M20
| P | Steel | |
| Coatings provide high-speed | ||
| M | Stainless Steel | |
| capability and are engineered | ||
| K | Cast Iron | |
| for fi nishing to light roughing. | ||
| N | Non-Ferrous | |
| S | High-Temp Alloys | |
| H | Hardened Materials |
wear toughness resistance
Grade Description 05 10 15 20 25 30 35 40 45 P M
Coated carbide. CVD — TiC-TiCN-TiN. Tri-phase coating on a hard, low binder K
content, fi ne-grained grade. High-speed, general-purpose grade for all kinds of steel. Gold in colour.
P M A PVD-TiN-coated grade. Straight 9.5% Co substrate. Submicron grain. For
| general-purpose machining of most steels, stainless steels, high-temperature alloys, | K |
| titanium, irons, and non-ferrous materials. Performs best at low speeds | N |
and will handle interruptions and high feed rates. S
P
| A PVD-TiN coating over a very wear-resistant, unalloyed carbide substrate. For | M |
| general-purpose machining of most steels, stainless steels, high-temperature alloys, | |
| titanium, irons, and non-ferrous materials. Grade provides combination of high | K |
| edge strength and wear resistance. Coating increases wear resistance and reduces | |
| problems with built-up edge. The substrate offers superior thermal deformation | |
| resistance and depth-of-cut notch resistance. | S |
PcBN tip brazed onto a carbide insert. Recommended for machining hardened steel (45–65 HRC). Use on bearing steel, hot and cold work tool steels, high-speed steels, die steels, case-hardened steels, carburised and nitrided irons, and some hard coatings. Can be run both dry and wet.
BN-H25 H
Polycrystalline diamond (PCD) compact grade provides exceptional hardness and abrasion resistance. CPD1 is a superior fi nish boring grade that will signifi cantly improve workpiece tolerances, surface fi nishes, and insert tool life in high-silicon N aluminium, copper, aluminium carbon graphite, hard rubber, plastics, and/or wood.
DP-N10
