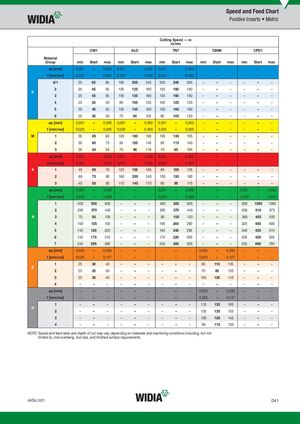

Positive Inserts • Metric
| Cuttin | g Speed m/min | — vc | |||||||||||||
| CM1 | ALO | TN7 | CBN6 | CPD1 | |||||||||||
| Material Group | min | Start | max | min | Start | max | min | Start | max | min | Start | max | min | Start | max |
| ap [mm] | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 | – | – | – | – | – | – |
| f [mm/rev] | 0,025 | – | 0,300 | 0,025 | – | 0,300 | 0,025 | – | 0,300 | – | – | – | – | – | – |
| 0/1 | 55 | 65 | 80 | 165 | 205 | 245 | 200 | 245 | 295 | – | – | – | – | – | – |
| 2 | 35 | 45 | 55 | 105 | 135 | 160 | 130 | 160 | 190 | – | – | – | – | – | – |
| P 3 | 35 | 45 | 55 | 105 | 135 | 160 | 130 | 160 | 190 | – | – | – | – | – | – |
| 4 | 25 | 35 | 40 | 85 | 105 | 125 | 100 | 125 | 150 | – | – | – | – | – | – |
| 5 | 35 | 45 | 55 | 105 | 135 | 160 | 130 | 160 | 190 | – | – | – | – | – | – |
| 6 | 25 | 30 | 35 | 70 | 90 | 105 | 85 | 105 | 130 | – | – | – | – | – | – |
| ap [mm] | 0,051 | – | 0,300 | 0,051 | – | 0,300 | 0,051 | – | 0,300 | – | – | – | – | – | – |
| f [mm/rev] | 0,025 | – | 0,300 | 0,025 | – | 0,300 | 0,025 | – | 0,300 | – | – | – | – | – | – |
| M 1 | 55 | 65 | 80 | 105 | 130 | 160 | 105 | 130 | 155 | – | – | – | – | – | – |
| 2 | 50 | 60 | 75 | 95 | 120 | 145 | 95 | 115 | 140 | – | – | – | – | – | – |
| 3 ap [mm] | 35 0,051 | 45 – | 55 0,300 | 70 0,051 | 90 – | 110 0,300 | 70 0,051 | 85 – | 105 0,300 | – – | – – | – – | – – | – – | – – |
| K f [mm/rev] 1 | 0,025 45 | – 60 | 0,300 70 | 0,025 125 | – 155 | 0,300 185 | 0,025 80 | – 105 | 0,300 125 | – – | – – | – – | – – | – – | – – |
| 2 | 60 | 75 | 90 | 160 | 200 | 240 | 105 | 130 | 160 | – | – | – | – | – | – |
| 3 | 45 | 55 | 65 | 115 | 145 | 170 | 80 | 95 | 115 | – | – | – | – | – | – |
| ap [mm] | 0,051 | – | 0,300 | – | – | – | 0,051 | – | 0,300 | – | – | – | 0,051 | – | 0,300 |
| f [mm/rev] 1 | 0,025 400 | – 505 | 0,300 605 | – – | – – | – – | 0,025 400 | – 505 | 0,300 605 | – – | – – | – – | 0,025 855 | – 1065 | 0,300 1280 |
| 2 | 295 | 370 | 445 | – | – | – | 295 | 370 | 445 | – | – | – | 650 | 810 | 975 |
| N 3 | 70 | 85 | 105 | – | – | – | 80 | 100 | 120 | – | – | – | 365 | 455 | 550 |
| 4 | 100 | 125 | 150 | – | – | – | 195 | 240 | 290 | – | – | – | 325 | 405 | 490 |
| 5 | 145 | 185 | 220 | – | – | – | 195 | 245 | 295 | – | – | – | 340 | 425 | 510 |
| 6 | 140 | 175 | 210 | – | – | – | 175 | 220 | 265 | – | – | – | 335 | 420 | 505 |
| 7 | 240 | 295 | 360 | – | – | – | 240 | 300 | 365 | – | – | – | 525 | 660 | 790 |
| ap [mm] | 0,025 | – | 0,200 | – | – | – | – | – | – | 0,025 | – | 0,200 | – | – | – |
| f [mm/rev] | 0,025 | – | 0,127 | – | – | – | – | – | – | 0,025 | – | 0,127 | – | – | – |
| S 1 | 25 | 30 | 40 | – | – | – | – | – | – | 90 | 110 | 135 | – | – | – |
| 2 | 20 | 25 | 30 | – | – | – | – | – | – | 70 | 85 | 105 | – | – | – |
| 3 | 25 | 35 | 40 | – | – | – | – | – | – | 100 | 120 | 145 | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| ap [mm] | – | – | – | – | – | – | – | – | – | 0,025 | – | 0,200 | – | – | – |
| f [mm/rev] | – | – | – | – | – | – | – | – | – | 0,025 | – | 0,127 | – | – | – |
| H 1 | – | – | – | – | – | – | – | – | – | 110 | 135 | 165 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 105 | 130 | 155 | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | 100 | 120 | 145 | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – | 90 | 110 | 135 | – | – | – |
