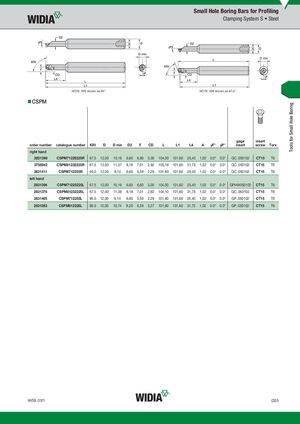

Small Hole Boring Bars for Profiling
NOTE: KRI shown as 95°. NOTE: KRI shown as 67,5°.
CSPM
gage insert
| order number | catalogue number | KRI | D | D min | D2 | F | CD | L L1 | L4 | A | aF° | aP° | insert screw | Torx | ||
| right hand | ||||||||||||||||
| 2831399 | CSPM71225225R | 67.5 | 12,00 | 10,16 | 6,60 | 6,60 | 3,30 | 104,00 | 101,60 | 25,40 | 1,02 | 0.0° | 0.0° | GC..050102 | CT15 | T6 |
| 3758942 | CSPM81232225R | 67.5 | 12,00 | 11,37 | 8,18 | 7,01 | 2,92 | 105,16 | 101,60 | 31,75 | 1,02 | 0.0° | 0.0° | GC..050102 | CT15 | T6 |
| 2831411 | CSPM712255R | 95.0 | 12,00 | 9,14 | 6,60 | 5,59 | 2,29 | 101,60 | 101,60 | 25,40 | 1,02 | 0.0° | 0.0° | GC..050102 | CT15 | T6 |
| left hand | ||||||||||||||||
| 2831394 | CSPM71225225L | 67.5 | 12,00 | 10,16 | 6,60 | 6,60 | 3,30 | 104,00 | 101,60 | 25,40 | 1,02 | 0.0° | 0.0° | GPHW050102 | CT15 | T6 |
| 2831378 | CSPM81232225L | 67.5 | 12,00 | 11,38 | 8,18 | 7,01 | 2,92 | 104,10 | 101,60 | 31,75 | 1,02 | 0.0° | 0.0° | GC..050102 | CT15 | T6 |
| 2831405 | CSPM712255L | 95.0 | 12,00 | 9,14 | 6,60 | 5,59 | 2,29 | 101,60 | 101,60 | 25,40 | 1,02 | 0.0° | 0.0° | GP..050102 | CT15 | T6 |
| 2831383 | CSPM812325L | 95.0 | 12,00 | 10,74 | 8,20 | 6,38 | 2,27 | 101,60 | 101,60 | 31,75 | 1,02 | 0.0° | 0.0° | GP..050102 | CT15 | T6 |
