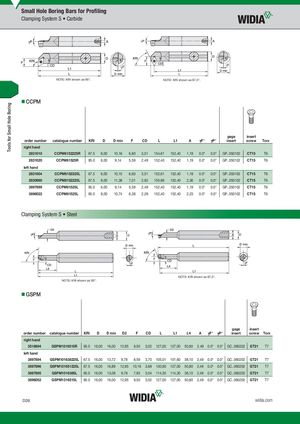

Small Hole Boring Bars for Profi ling
NOTE: KRI shown as 95°. NOTE: KRI shown as 67,5°.
- CCPM
gage insert
| order number | catalogue number | KRI | D | D min | F | CD | L | L1 | A | aF° | aP° | insert screw | Torx | ||
| right hand | |||||||||||||||
| 2831010 | CCPM6152225R | 67.5 | 6,00 | 10,16 | 6,60 | 3,51 | 154,61 | 152,40 | 1,19 | 0.0° | 0.0° | GP..050102 | CT15 | T6 | |
| 2831020 | CCPM61525R | 95.0 | 6,00 | 9,14 | 5,59 | 2,49 | 152,40 | 152,40 | 1,19 | 0.0° | 0.0° | GP..050102 | CT15 | T6 | |
| left hand | |||||||||||||||
| 2831004 | CCPM6152225L | 67.5 | 6,00 | 10,15 | 6,60 | 3,51 | 152,61 | 152,40 | 1,19 | 0.0° | 0.0° | GP..050102 | CT15 | T6 | |
| 2830980 | CCPM8152225L | 67.5 | 8,00 | 11,38 | 7,01 | 2,92 | 155,96 | 152,40 | 2,36 | 0.0° | 0.0° | GP..050102 | CT15 | T6 | |
| 3897899 | CCPM61525L | 95.0 | 6,00 | 9,14 | 5,59 | 2,49 | 152,40 | 152,40 | 1,19 | 0.0° | 0.0° | GP..050102 | CT15 | T6 | |
| 3896022 | CCPM81525L | 95.0 | 8,00 | 10,74 | 6,38 | 2,28 | 152,40 | 152,40 | 2,23 | 0.0° | 0.0° | GP..050102 | CT15 | T6 |
Clamping System S • Steel
NOTE: KRI shown as 67,5°. NOTE: KRI shown as 95°.
- GSPM
gage insert
| order number | catalogue number | KRI | D | D min | D2 | F | CD | L | L1 | L4 | A | aF° | aP° | insert screw | Torx | |
| right hand | ||||||||||||||||
| 3518694 | GSPM1316515R | 95.0 | 16,00 | 16,00 | 12,95 | 9,50 | 3,02 | 127,00 | 127,00 | 50,80 | 2,49 | 0.0° | 0.0° | GC..060202 | GT21 | T7 |
| left hand | ||||||||||||||||
| 3897894 | GSPM101638225L | 67.5 | 16,00 | 13,72 | 9,78 | 8,59 | 3,70 | 105,01 | 101,60 | 38,10 | 2,49 | 0.0° | 0.0° | GC..060202 | GT21 | T7 |
| 3897896 | GSPM131651225L | 67.5 | 16,00 | 16,89 | 12,95 | 10,16 | 3,68 | 130,90 | 127,00 | 50,80 | 2,49 | 0.0° | 0.0° | GC..060202 | GT21 | T7 |
| 3897895 | GSPM1016385L | 95.0 | 16,00 | 13,08 | 9,78 | 7,93 | 3,04 | 114,30 | 114,30 | 38,10 | 2,49 | 0.0° | 0.0° | GC..060202 | GT21 | T7 |
| 3896052 | GSPM1316515L | 95.0 | 16,00 | 16,00 | 12,95 | 9,50 | 3,02 | 127,00 | 127,00 | 50,80 | 2,49 | 0.0° | 0.0° | GC..060202 | GT21 | T7 |
